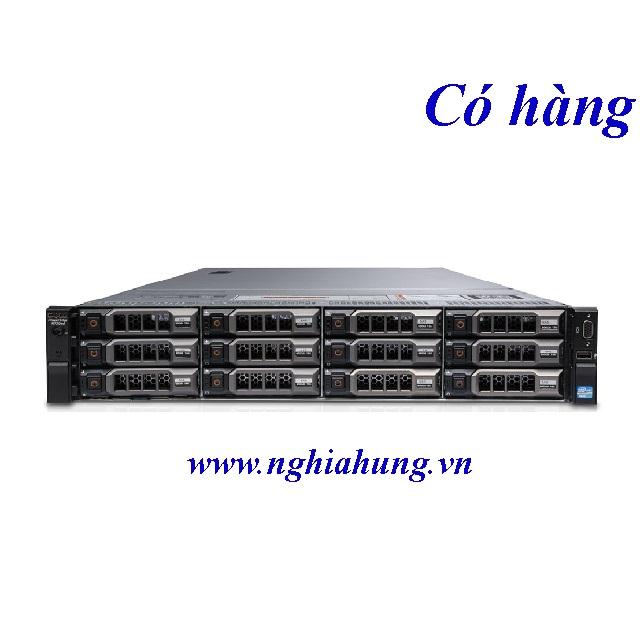

Server Dell PowerEdge R720xd |
CPU: 2x 6 Core E5-2640 (2.5Ghz 15M Cache)
RAM: 16GB DDR3 ECC
HDD: Option HDD SAS/SATA
DVD: Option (Chưa kèm)
RAID: PERC H710 (Raid 0,1,5,10..)
NIC: 2x RJ45 1G + 2x SFP 10G (Chưa kèm Modul)
Power Supply: 2x PS Hot-wap (2/2)
Rail Kit: Option (Chưa kèm)
Hàng nhập khẩu trực tiếp từ Mỹ
"Hãy liên hệ với chúng tôi để có giá tốt nhất" |
|
Form factor |
2U rack |
|
Processors Server Dell R720xd |
Intel® Xeon® processor E5-2600/2600 v2 product family |
|
Processor sockets |
2 |
|
Internal interconnect |
2 x Intel QuickPath Interconnect (QPI) links: 6.4 GT/s, 7.2 GT/s, 8.0 GT/s |
|
Cache |
2.5MB per core; core options: 2, 4, 6, 8, 10 |
|
Chipset |
Intel C600 |
|
Memory Server Dell R720xd |
Up to 768GB (24 DIMM slots): 2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MT/s |
|
I/O slots |
- 7 PCIe slots:
One x16 full-length, full-height
Three x8 full-length, full-height
Three x8 half-length, half-height |
|
RAID controller Server Dell R720xd |
Internal controllers:
PERC S110 (SW RAID)
PERC H310
PERC H710
PERC H710P
External HBAs (RAID):
PERC H810
External HBAs (non-RAID):
6Gbps SAS HBA |
|
Drive bays |
2.5” PCIe SSD, SAS SSD, SATA SSD, SAS (15K, 10K), nearline SAS (7.2K), SATA (7.2K), SAS 512n (15K)
3.5” SAS (15K), nearline SAS (7.2K), SATA (7.2K)
Self-Encrypting Drives available |
|
Maximum internal storage1 |
Up to 32TB |
|
Hard drives Server Dell R720xd |
Hot-plug hard driveSSD,options:SSD, SAS (15K, 10K), nearline SAS (7.2K), SATA (7.2K) Self-encrypting drives available |
|
Embedded NIC |
- Broadcom® 5720 quad-port 1GbE Base-T (no TOE or iSCSI offload)
Intel I350 quad-port 1GbE Base-T (no TOE or iSCSI offload)
Intel X540 dual-port 10GbE Base-T with 2 x 1GbE (FCoE capability enabled on the 10GbE ports)
Broadcom 57800S dual-port 10GbE Base-T with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports)
Broadcom 57800S dual-port 10GbE SFP+ with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports)
Broadcom 57840S quad-port 10GbE SFP+ Rack NDC (NPAR1.0, SRIOV, DCB, iSCSI and FCoE offloads and CEM) |
|
Power supply Server Dell R720xd |
- Titanium efficiency, hot-plug redundant 750W power supply
Platinum efficiency, hot-plug redundant 495W, 750W or 1100W power supplies
Auto-ranging power supplies |
|
Availability |
- High-efficiency, hot-plug, redundant power supplies; hot-plug drive bays; TPM; dual internal SD support; hot-plug
redundant fan; optional bezel; luggage-tag; ECC memory, interactive LCD screen; extended thermal support; ENERGY STAR® compliant, extended power range; switch agnostic partitioning (SWAP) |
|
Remote management |
iDRAC7 ExpressLifecycle Controller Enterprise (upgrade option), 8GB vFlash media (upgrade option), 16GB vFlash media (upgrade option) |
|
Systems management Server Dell R720xd |
IPMI 2.0 compliant
Dell OpenManage™ Essentials
Dell OpenManage Power Center
Dell OpenManage Connections:
• Dell OpenManage Integration Suite for Microsoft® System Center
• Dell plug-in for VMware® vCenter™
• HP Operations Manager, IBM Tivoli® Netcool®, and CA Network and Systems Management |
|
Rack support |
- ReadyRails II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm
ReadyRails static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded and 2-post (Telco) racks |
|
Operating systems Server Dell R720xd |
- Microsoft® Windows Server® 2012
Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V®)
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux®
Virtualization options:
Citrix® XenServer®
VMware® vSphere® ESXi ™
Red Hat Enterprise Virtualization® |
