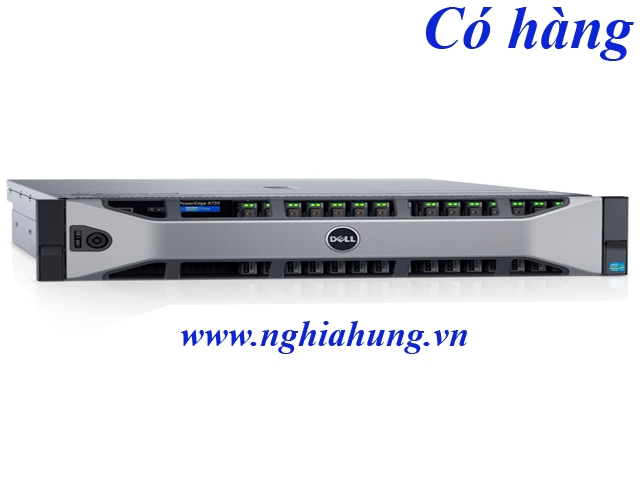

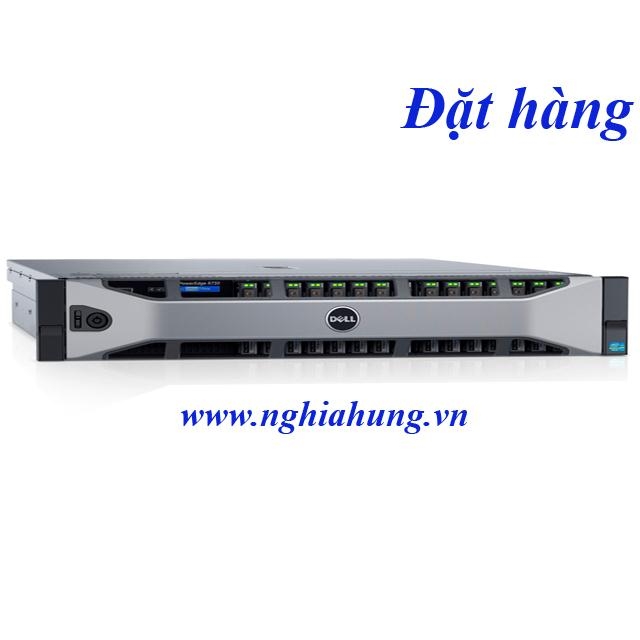

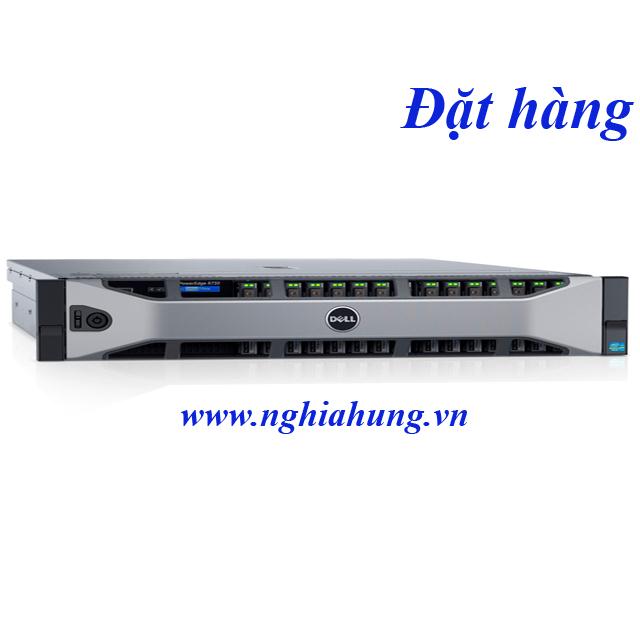

Server Dell PowerEdge R730xd CPU E5-2680 v4
Máy Chủ Dell R730xd, bán Máy Chủ Dell R730xd, phân phối Máy Chủ Dell R730xd, Bán Server Dell R730xd, phân phối Server Dell R730xd, Máy Chủ Dell R730xd giá rẻ, phân phối chính thức máy chủ Dell R730xd SFF |
CPU: 1x 14 Core E5-2680 v4 (2.4GHz, 35M Cache)
RAM: 16GB RDIMM, DDR4 ECC
HDD: Option HDD SAS/SATA
DVD: Option (Chưa kèm)
RAID: PERC H730 RAID(0,1,5,10,50)
NIC: 2x RJ45 1G + 2x SFP 10G (Chưa kèm Modul)
Power Supply: 2x PS (2/2)
Rail kit: Option (Chưa kèm)
Hàng nhập khẩu trực tiếp từ Mỹ.
" Hãy liên hệ với chúng tôi để có giá tốt nhất " |
|
Form factor |
2U rack |
|
Processors Server Dell R730xd E5-2680 v4 |
Intel Xeon processor E5-2600v3/2600 v4 product family |
|
Processor sockets |
2 |
|
Memory Server Dell R730xd E5-2680 v4 |
Up to 1.5TB (24 DIMM slots): 2GB/4GB/8GB/16GB/32GB/64GB DDR4 |
|
PCIe slots |
Slot configuration #1:
Slot 1: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackett
Slot 2: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackett
Slot 3: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackett
Slot 4: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)
Slot 5: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)
Slot 6: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)
Slot 7: Full Length, Full Height, PCIe Gen3 x8 (x16 connector) |
|
RAID controller Server Dell R730xd E5-2680 v4 |
PERC S130
PERC H330
PERC H730
PERC H730P
External: PERC H830 |
|
Hard drives (hot-plug) |
SAS, SATA, nearline SAS, SSD, PCIe SSD:
Up to 81TB with 18 x 1.8” 960GB SATA SSD = 8 x 3.5” SATA/nearline SAS HDD
Up to 46.8TB with 24 x 2.5” 1.8TB hot-plug SAS HDD + 2 x 2.5” 1.8TB hot-plug SAS HDD
Up to 131.6TB with 12 x 3.5 8TB nearline SAS HDD = 4 x 3.5 8TB nearline SAS + 2 x 2.5 1.8TB SAS HDD or SSD |
|
Feature |
Specification |
|
Network Controller |
Broadcom® 5719 quad-port 1Gb NIC
Broadcom 5720 dual-port 1Gb NIC
Broadcom 57810 dual-port 10Gb DA/SFP+ CNA
Broadcom 57810 dual-port 10Gb Base-T network adapter
Intel® Ethernet I350 dual-port 1Gb server adapter
Intel Ethernet I350 quad-port 1Gb server adapter
Intel Ethernet X540 dual-port 10GBASE-T server adapter
Mellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ server network adapter
Mellanox ConnectX-3 dual-port 40Gb Direct Attach/QSFP server network adapter
Emulex® LPE 12000, single-port 8Gb Fibre Channel HBA
Emulex LPE 12002, dual-port 8Gb Fibre Channel HBA
Emulex LPe16000B, single-port 16Gb Fibre Channel HBA
Emulex LPe16002B, dual-port 16Gb Fibre Channel HBA
Emulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNA
QLogic® 2560, single-port 8Gb Optical Fibre Channel HBA
QLogic 2562, dual-port 8Gb Optical Fibre Channel HBA
Qlogic 2660, single-port 16GB, Fibre Channel HBA, full height
Qlogic 2662, dual-port 16GB, Fibre Channel HBA, full height |
|
Power supply Server Dell R730xd E5-2680 v4 |
1600W AC, 86 mm (Platinum)
1100W AC, 86 mm (Platinum)
1100W DC, 86 mm (Gold)
750W AC, 86 mm (Platinum)
750W AC, 86 mm (Diamond)
495W AC, 86 mm (Platinum) |
|
Availability |
ECC memory
Hot-plug hard drives
Hot-plug redundant cooling
Hot-plug redundant power
iDRAC8
Internal Dual SD Module
Single Device Data Correction (SDDC)
Spare Rank
Tool-less chassis
Support for high availability clustering and virtualization
Proactive systems management alerts
iDRAC8 with Lifecycle Controller |
|
Management Server Dell R730xd E5-2680 v4 |
Dell OpenManage portfolio of systems management solutions, including:
OpenManage Essentials console
iDRAC8 with Lifecycle Controller
iDRAC Direct
iDRAC Quick Sync
OpenManage Mobile |
|
Rack support |
ReadyRails™ sliding rails with optional cable management arm for 4-post racks |
|
Operating systems Server Dell R730xd E5-2680 v4 |
Microsoft Windows® Server 2008/2012 SP2, x86/x64 (x64 includes Hyper-VTM )
Microsoft Windows® Server 2008/2012 R2, x64 (includes Hyper-VTM v2)
Microsoft® Windows® HPC Server 2008
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux
VMware® ESX |
