| Device Type |

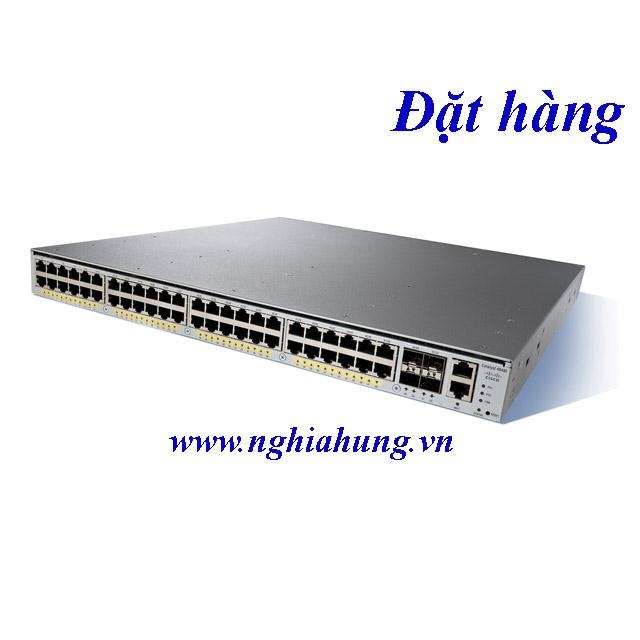

Switch - 48 ports - L3 - Managed |
| Enclosure Type |
Rack-mountable - 1U |
| Interfaces |
Gigabit Ethernet |
| Ports |
48 x 10/100/1000 + 4 x SFP |
| Performance |
Switching capacity : 96 Gbps
Throughput : 72 Mpps |
| Capacity |
Active VLANs : 4096
Spanning Tree Protocol instances : 1500
Switched virtual interfaces (SVIs) : 2000
QoS hardware entries : 32000
Multicast entries (Layer 3) : 28000
Multicast entries (Layer 2) : 16000 |
| MAC Address Table Size |
32K entries |
| Jumbo Frame Support |
9216 |
| Routing Protocol |
RIP-1, RIP-2, EIGRP, static IP routing |
| Remote Management Protocol |
SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, CLI |
| Authentication Method |
Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features |
Layer 3 switching, Layer 2 switching, auto-sensing per device, IP-routing, auto-negotiation, BOOTP support, ARP support, trunking, Cisco Fast EtherChannel, VLAN support, Cisco Gigabit EtherChannel , IGMP snooping, ISL support, Syslog support, manageable, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Jumbo Frames support, Virtual Route Forwarding-Lite (VRF-Lite), Time Domain Reflectometry (TDR), WCCP 2.0, Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Per-VLAN Rapid Spanning Tree (PVRST) |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag |
| Processor |
1 : 266 MHz |
| RAM |
256 MB - SDRAM |
| Flash Memory |
64 MB Flash |
| Status Indicators |
Link activity, power, system, status |
| EXPANSION / CONNECTIVITY |
| Interfaces |
48 x 1000Base-T - RJ-45
1 x 100Base-TX - RJ-45 - management
1 x console - RJ-45 - management
4 x SFP (mini-GBIC) |
| POWER |
| Power Device |
Internal power supply - hot-plug |
| Installed Qty |
1 (installed) / 2 (max) |
| Power Redundancy |
Optional |
| Power Redundancy Scheme |
1+1 (with optional power supply) |
| Voltage Required |
AC 120/230 V ( 50/60 Hz ) |
| MISCELLANEOUS |
| Compliant Standards |
NEBS level 3, FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, CSA 22.2 No. 60950, ICES-003 Class A, FCC CFR47 Part 15, IEC 825-1, IEC 825-2, FCC CFR21 Part 1040, UL 60950-1, IEC 60950-1, EN 60950-1 |
| SOFTWARE / SYSTEM REQUIREMENTS |
| Software Included |
Cisco IOS IP Base |
| DIMENSIONS & WEIGHT |
| Width |
43.9 cm |
| Depth |
41 cm |
| Height |
4.4 cm |
| Weight |
7.5 kg |
| MANUFACTURER WARRANTY |
| Service & Support |
1 year warranty |
| Service & Support Details |
Limited warranty - 1 year |
| ENVIRONMENTAL PARAMETERS |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
10 - 90% (non-condensing) |
| Min Storage Temperature |
-40 °C |
| Max Storage Temperature |
75 °C |
