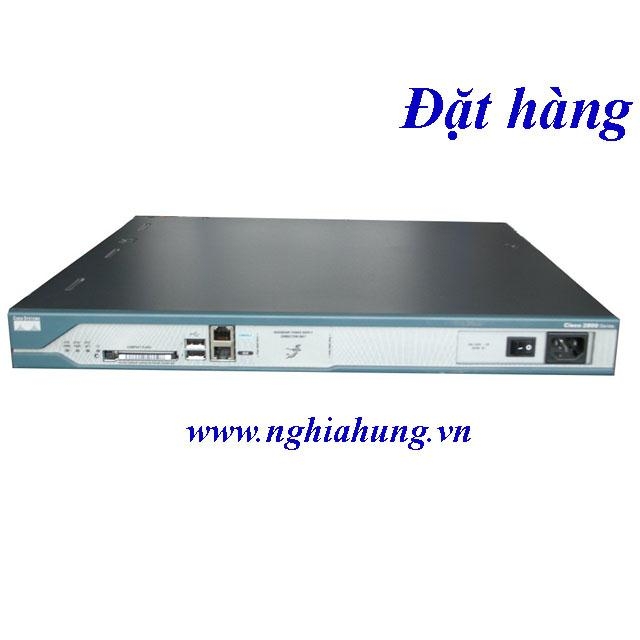

Thiết bị định tuyến Router Cisco 2811-SEC K9

General Info

Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 2800
Product Name: 2811 Router with Security Bundle
Product Type: Integrated Services Router

Interfaces/Ports

Number of Ports: 2
Fast Ethernet Port: Yes
Interfaces/Ports: 2 x RJ-45 10/100Base-TX LAN
Interfaces/Ports: 1 x Auxiliary Management
Interfaces/Ports: 1 x Console Management
Interfaces/Ports: 2 x USB

Management & Protocols

Management:
Cisco Router and Security Device Manager (SDM)
Simple Network Management Protocol (SNMP)
Cisco Router and Security Device Manager (SDM)
Simple Network Management Protocol (SNMP)
Protocols: IPSec
Protocols: SSH v2
Protocols: IPv6
Protocols: SNMP v3
Protocols: TCP/IP

Power Description

Input Voltage: 220V AC
Input Voltage: 110V AC
Input Voltage Range: 100V AC to 240V AC
Input Current: 1A @ 230V AC
Input Current: 2A @ 110V AC
Frequency: 50 Hz or 60 Hz

Physical Characteristics

Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Form Factor: Wall-mountable
Dimensions: 1.75 Height x 17.25 Width x 16.4 Depth

Miscellaneous

Additional Information:
Interface Card Slots:
Each slot can support HWIC, WIC, VIC, or VWIC type modules
RPS:
External only, connector for RPS provided by default
Operation Altitude (derate 1.5degrees C per 1000 ft):
27.5degrees C @ 15 kft
35degrees C @ 3km/10 kft
40degrees C @ sea level
System Requirements:
Minimum Cisco IOS Software release: 12.3(8)T
Minimum Cisco IOS Software release: 12.3(8)T
Certifications & Standards:
IEEE 802.3: 10BASE-T
IEEE 802.3u: 100BASE-TX
IEEE 802.1x: Authentication
USB 1.1
Safety:
UL 60950
CAN/CSA C22.2 No. 60950
IEC 60950
EN 60950-1
AS/NZS 60950
Immunity:
EN300386
EN55024/CISPR24
EN50082-1
EN61000-6-2
EMC:
FCC Part 15
ICES-003 Class A
EN55022 Class A
CISPR22 Class A
AS/NZS 3548 Class A
VCCI Class A
EN 300386
EN61000-3-3
EN61000-3-2
TELCOM:
Interfaces comply with FCC Part 68, CS-03, JATE Technical Conditions, European Directive 99/5/EC and relevant TBR's
IEEE 802.3: 10BASE-T
IEEE 802.3u: 100BASE-TX
IEEE 802.1x: Authentication
USB 1.1
Safety:
UL 60950
CAN/CSA C22.2 No. 60950
IEC 60950
EN 60950-1
AS/NZS 60950
Immunity:
EN300386
EN55024/CISPR24
EN50082-1
EN61000-6-2
EMC:
FCC Part 15
ICES-003 Class A
EN55022 Class A
CISPR22 Class A
AS/NZS 3548 Class A
VCCI Class A
EN 300386
EN61000-3-3
EN61000-3-2
TELCOM:
Interfaces comply with FCC Part 68, CS-03, JATE Technical Conditions, European Directive 99/5/EC and relevant TBR's

Memory

Standard Memory: 256MB
Maximum Memory: 760MB
Memory Technology: DRAM
Flash Memory: 64 MB

I/O Expansions

Number of Expansion Slots: 9
Expansion Slots: (4 Total) Expansion Slot
Expansion Slots: (2 Total) AIM
Expansion Slots: (2 Total) PVDM
Expansion Slots: (1 Total) NME
