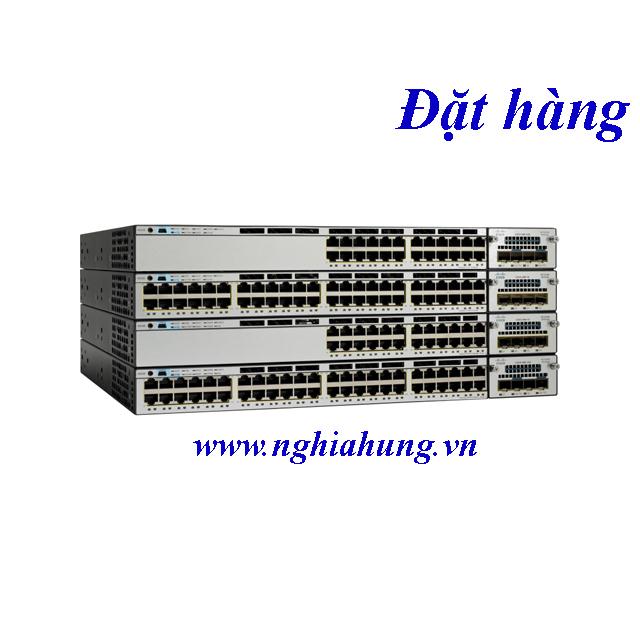

| WS-C3750X-24P-L data sheet |
| Manufacturer |
Cisco Systems, Inc |
| Manufacturer Part Number |
WS-C3750X-24P-L |
| Product Type |
Switch - 24 ports - Managed - stackable |
| Form Factor |
Fixed, Rack Mountable 1U, Stackable/Clustering |
| Switch Port density - Uplinks |
24 x 10/100/1000 Ethernet Ports |
| Power Over Ethernet (PoE) |
Yes |
| Max Number of Stacks |
9 |
| Remote Management Protocol |
SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, FTP, TFTP, SSH, CLI |
| Authentication Method |
Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Features |
Hot swap module replacement, Layer 2 switching, dynamic IP address assignment , DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Per-VLAN Spanning Tree Plus (PVST+) |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at |
| DRAM Memory |
256 MB |
| Flash Memory |
128 MB Flash |
| LED Status Lights Indicators |
Port status, link activity, port transmission speed, port duplex mode, power, system |
| Connectivity / Expansion Slots |
| Interfaces |
24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - PoE
USB : 1 x 4 PIN USB Type A
1 x console - mini-USB Type B - management
1 x RS-232 - RJ-45 - management
1 x 10Base-T/100Base-TX - RJ-45 - management
Network stack device : 2 x |
| Expansion Slots Total (Free) |
1 ( 1 ) x Expansion Slot |
| Power Supply Specifications |
| Power Device |
Power supply - redundant - plug-in module |
| Installed Qty |
1 (installed) / 2 (max) |
| Power Redundancy |
Optional |
| Power Redundancy Scheme |
1+1 (with optional power supply) |
| Voltage Required |
AC 120/230 V ( 50/60 Hz ) |
| Features |
Redundant Power System (RPS) connector |
| Dimensions / Weight / Miscellaneous |
| Width |
44.5 cm |
| Depth |
46 cm |
| Height |
4.5 cm |
| Weight |
7.2 kg |
| Rack Mounting Kit |
Optional |
| MTBF |
167,198 hour(s) |
| Compliant Standards |
CE, TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1 |
| System Software |
| Software Included |
Cisco IOS LAN Base |
| Manufacturer Warranty |
| Service & Support |
Limited lifetime warranty |
| Service & Support Details |
Limited warranty - lifetime
Limited warranty - power supply and fans - 5 years
New releases update |
