| Layer Support: 3 |
| Layer Support: 2 |
| Number of Stacks: 9 |
| Address Table: 12K MAC Addresses |
| |
| |
| Manageable: Yes |
Management:
- Telnet
- SNMP v1, v2c, and v3
- 4000 VLAN IDs are supported
- SPAN works across all the ports in a stack
- Cisco Works for network-wide management
- Cisco Network Assistant Software
- Cisco Cluster Management Suite (CMS) Software
- Command-line interface (CLI) for detailed configuration
- Web-based tool for quick configuration based on pre-set templates
- Remote Switch Port Analyzer (RSPAN) allows administrators to remotely monitor ports
- Up to 1005 VLANs per switch or stack and up to 128 Spanning-Tree instances per switch are supported.
- Embedded Remote Monitoring (RMON) software agent supports 4 RMON groups (history, statistics, alarms, and events)
|
| Protocols: TACACS+ |
| Protocols: RADIUS |
| Protocols: PIM |
| Protocols: Telnet |
| Protocols: SNMP |
| Protocols: PVST+ |
| Protocols: STP |
| Protocols: NTP |
| Protocols: TFTP |
| Protocols: TCP/IP |
| Protocols: CGMP |
| Protocols: CDPv2 |
| Protocols: CDPv1 |
| Protocols: DHCP |
| Protocols: DTP |
| Protocols: PAgP |
| Protocols: LACP |
| Protocols: RSTP |
| Protocols: PVRST+ |
| Protocols: HSRP |
| Protocols: RIP v2.0 |
| Protocols: RIP v1.0 |
| Protocols: IGMP |
| Protocols: VTP |
| Protocols: ARP |
| Protocols: MSTP |
Security Features:
- RADIUS
- TACACS+
- Port-based ACLs (PACLs)
- Secure Shell (SSH) Protocol
- Spanning Tree Root Guard (STRG)
- Cisco CMS Software security wizards
- 1000 access control entries (ACEs) are supported
- IEEE 802.1x allows dynamic, port-based security, providing user authentication
- Port-based ACLs for Layer 2 interfaces allow security policies to be applied on individual switch ports.
- IEEE 802.1x with an ACL assignment allows for specific identity-based security policies regardless of where the user is connected.
|
| |
| |
| Standard Memory: 128MB |
| Memory Technology: DRAM |
| Flash Memory: 32MB |
| |
| |
Operating System:
- SMI installed
- SMI installed
|
| |
| |
| Status Indicators:
Per-port status LEDs:
- Link integrity
- Disabled
- Activity
- Speed
- Full-duplex indications
System-status LEDs:
- System
- RPS
- Bandwidth-utilization indications
|
| |
| |
| MTBF: 165243Hour |
| |
| |
| Input Voltage: 220V AC |
| Input Voltage: 110V AC |
| Input Voltage Range: 100V AC to 240V AC |
| Input Current: 17.5A @ 12V DC |
| Input Current: 1.5 Ato 3 A |
| Frequency: 50 Hz or 60 Hz |
| Power Consumption: 160 W Maximum |
| Power Source: Power Supply |
| Redundant Power Supply: Yes |
| |
| |
| Temperature: 32 degrees F (0.0 degrees C) to 113 degrees F (45.0 degrees C) Operating |
| Temperature: -13 degrees F (-25.0 degrees C) to 158 degrees F (70.0 degrees C) Storage |
| Humidity: 10% to 85% Non-condensing Relative Humidity Operating |
| Altitude: 10000 ft Maximum Operating |
| Altitude: 15000 ft Maximum Storage |
| Thermal Dissipation: 500 BTU/h |
| |
| |
| Manufacturer: Cisco Systems, Inc |
| Brand Name: Cisco |
| Product Line: Catalyst |
| Product Series: 3750 |

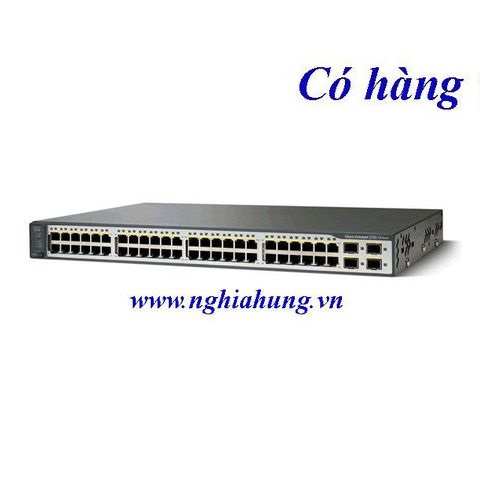

| Product Name: Catalyst 3750G-48TS Stackable Gigabit Ethernet Switch |
| Product Type: Stackable Ethernet Switch |
| |
| |
| Number of Ports: 48 |
| Gigabit Ethernet Port: Yes |
| Interfaces/Ports: 1 x RJ-45 Console Management |
| Interfaces/Ports: 48 x RJ-45 10/100/1000Base-T LAN |
| |
| |
| Connectivity Media: Category 3 UTP 10Base-T |
| Connectivity Media: Category 4 UTP 10Base-T |
| Connectivity Media: Category 5 UTP 10/100/1000Base-T |
| Distance Support: 328ft |
| Performance: 64Gbps Switching Fabric |
| Performance: 38.7Mpps Stack Forwarding Rate for 64-byte Packet |
| Performance: 38.7Mpps Forwarding Rate |
| Performance: 32Gbps Stacking Bandwidth |
| |
| |
| Number of Expansion Slots: 4 |
| Expansion Slots: (4 Total) SFP (mini-GBIC) |
| Modules: Not Included |
| |
| |
| Flow Control: IEEE 802.3x (Full-duplex) |
| Layer Support: 4 |
| |
| |
| Dimensions: 1.73 Height x 17.5 Width x 16.1 Depth |
| Weight: 14lb |
| |
| |
Additional Information:
- 11,000 unicast routes
- Full dynamic IP routing
- Acoustic Noise: 48 dB
- Configurable up to 1000 IGMP groups and multicast routes
- The connector offers a 675W redundant power system (RPS) that supports up to 6 external network devices and provides power to 1 failed device at a time.
- Configurable maximum transmission unit (MTU) of up to 9000 bytes,with a maximum Ethernet frame size of 9018 Bytes (Jumbo frames) for bridging on Gigabit Ethernet ports, and up to 1546 bytes for bridging and routing on Fast Ethernet ports.
- The Cisco Catalyst 3750 Series stacks up to 9 switches as a single logical unit for a total of 252 Ethernet 10/100/1000 ports, or 9 10Gigabit Ethernet ports. Individual 10/100/1000 and 10Gigabit Ethernet units may be joined in any combination to evolve with network needs.
|
| Certifications & Standards:
IEEE:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1x
- IEEE 802.3ad
- IEEE 802.3ae
- IEEE 802.3x
- IEEE 802.1D
Management:
- BRIDGE-MIB
- CISCO-CDP-MIB
- CISCO-CLUSTER-MIB
- CISCO-CONF-MAN-MIB
- CISCO-ENTITY-FRU-CONTROL-MIB
- CISCO-ENVMON-MIB
- CISCO-FLASH-MIB
- CISCO-FTP-CLIENT-MIB
- CISCO-HSRP-MIB
- CISCO-HSRP-EXT-MIB
- CISCO-IGMP-FILTER-MIB
- CISCO-IMAGE-MIB
- CISCO-L2L3-INTERFACE-CONFIG-MIB
- CISCO-MAC-NOTIFICATION-MIB
- CISCO-MEMORY-POOL-MIB
- CISCO-PAGP-MIB
- CISCO-PING-MIB
- CISCO-PROCESS-MIB
- CISCO-RTTMON-MIB
- CISCO-STACK-MIB
- CISCO-STACKMAKER-MIB
- CISCO-STP-EXTENSIONS-MIB
- CISCO-SYSLOG-MIB
- CISCO-TCP-MIB
- CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB
- CISCO-VLAN-MEMBERSHIP-MIB
- CISCO-VTP-MIB
- ENTITY-MIB
- ETHERLIKE-MIB
- IF-MIB
- IGMP-MIB
- IPMROUTE-MIB
- OLD-CISCO-CHASSIS-MIB
- OLD-CISCO-FLASH-MIB
- OLD-CISCO-INTERFACES-MIB
- OLD-CISCO-IP-MIB
- OLD-CISCO-SYS-MIB
- OLD-CISCO-TCP-MIB
- OLD-CISCO-TS-MIB
- OSPF-MIB (RFC 1253)
- PIM-MIB
- RFC1213-MIB
- RFC1253-MIB
- RMON-MIB
- RMON2-MIB
- RMON I and II standards
- SNMPv1, SNMPv2c, SNMPv3
- SNMP-FRAMEWORK-MIB
- SNMP-MPD-MIB
- SNMP-NOTIFICATION-MIB
- SNMP-TARGET-MIB
- SNMPv2-MIB
- TCP-MIB
- UDP-MIB
Safety Certifications:
- UL to UL 60950, Third Edition
- C-UL to CAN/CSA C22.2 No. 60950-00, Third Edition
- TUV/GS to EN 60950:2000
- CB to IEC 60950 with all country deviations
- NOM to NOM-019-SCFI
- CE Marking
Electromagnetic Emissions Certifications:
- FCC Part 15 Class A
- EN 55022: 1998 (CISPR22)
- EN 55024: 1998 (CISPR24)
- VCCI Class A
- AS/NZS 3548 Class A
- CE
- CNS 13438 Class A
- MIC
Telco:
|
| |
| |
| Standard Warranty: Lifetime Limited |
