| Shipping Dimensions: 11.25 Height x 17.25 Width x 22.75 Depth |
| Weight: 12.5lb |
| Shipping Weight: 14.5 lb |
| |
| |
| Manufacturer: Cisco Systems, Inc |
| Brand Name: Cisco |
| Product Line: Catalyst |
| Product Series: 3750 |

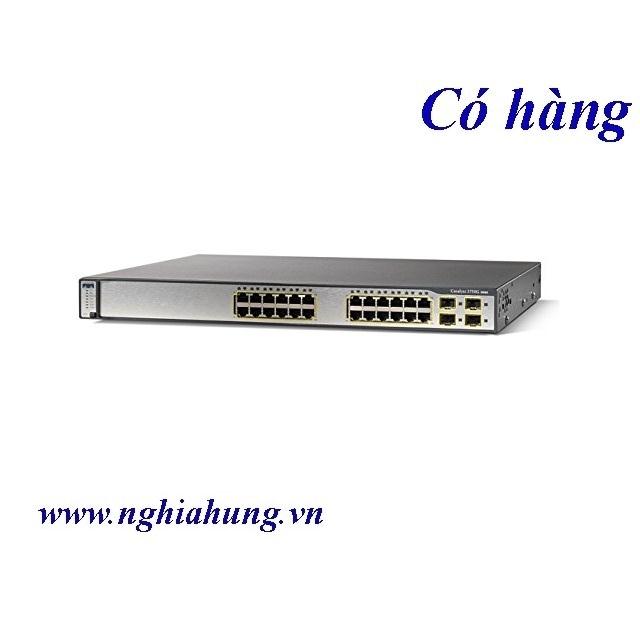

| Product Name: Catalyst 3750G-24TS Ethernet Switch |
| Product Type: Ethernet Switch |
| |
| |
| Number of Ports: 24 |
| Gigabit Ethernet Port: Yes |
| Interfaces/Ports: 1 x RJ-45 Console Management |
| Interfaces/Ports: 2 x Stack |
| Interfaces/Ports: 24 x RJ-45 10/100/1000Base-T LAN |
| |
| |
| Security Features:
- RADIUS
- TACACS+
- SSH
- VLANs
- 1000 access control entries (ACEs) are supported
- Authentication
- Port-level security
- Identity-based network services with 802.1x and extensions
|
| |
| |
| Standard Memory: 128MB |
| Flash Memory: 16MB |
| |
| |
| Operating System:
- Software Image: Enhanced Multilayer Image (EMI)
|
| |
| |
| Status Indicators: Per-port status LEDs:
- Link integrity
- Disabled
- Activity
- Speed
- Full-duplex indications
- System-status LEDs:
- System
- RPS
- Bandwidth-utilization indications
|
| |
| |
| MTBF: 188574Hour |
| |
| |
| Input Voltage: 220V AC |
| Input Voltage: 110V AC |
| Input Voltage Range: 100V AC to 127V AC |
| Frequency: 50 Hz or 60 Hz |
| Power Consumption: 165 W Maximum |
| Power Source: Power Supply |
| Redundant Power Supply: Yes |
| |
| |
| Temperature: 32 degrees F (0.0 degrees C) to 113 degrees F (45.0 degrees C) Operating |
| |
| |
Additional Information:
- Stackable: A total of 468 Ethernet 10/100 ports or 252 Ethernet 10/100/1000 ports
- Up to 12 EtherChannel groups are supported per stack
- Up to 64 aggregate or individual policers are available per Fast Ethernet or Gigabit Ethernet port
- 11,000 unicast routes
- Configurable up to 1000 IGMP groups and multicast routes
- Configurable maximum transmission unit (MTU) of up to 9018 bytes (Jumbo frames) for bridging on Gigabit Ethernet ports, and up to 1546 bytes for bridging and routing on Fast Ethernet ports
- Acoustic noise: 42 decibels (dB)
|
| |
| |
| Connectivity Media: Category 4 UTP 10Base-T |
| Connectivity Media: Category 3 UTP 10Base-T |
| Connectivity Media: Category 5 UTP 10/100/1000Base-T |
| Distance Support: 328ft |
| Performance: 32Gbps Forwarding Bandwidth at Layer 2 and Layer 3 |
| Performance: 38.7Mpps Forwarding Rate |
| Performance: 38.7Mpps Stack Forwarding Rate for 64-byte Packet |
| |
| |
| Number of Expansion Slots: 4 |
| Expansion Slots: (4 Total) SFP (mini-GBIC) |
| Modules: Not Included |
| |
| |
| Flow Control: IEEE 802.3x (Full-duplex) |
| Layer Support: 2 to 3 |
| Number of Stacks: 9 |
| Address Table: 12K MAC Addresses |
| |
| |
| Manageable: Yes |
| Management:
- Command-line interface (CLI)
- Cisco Cluster Management Suite (CMS) Software
- CiscoWorks
- IGMP snooping
- Up to 1024 VLANs per switch or stack and up to 128 spanning-tree instances per switch are supported
- 4000 VLAN IDs are supported
- Cisco Group Management Protocol (CGMP)
- RMON
- Trivial File Transfer Protocol (TFTP)
- Web browser setup utility allows one-click initialization for IP addresses and passwords
- SNMP v1, v2c, and v3
|
| Protocols: CDPv2 |
| Protocols: HSRP |
| Protocols: BGP v4 |
| Protocols: IGRP |
| Protocols: RSTP |
| Protocols: WCCP |
| Protocols: PVRST+ |
| Protocols: EIGRP |
| Protocols: DVMRP |
| Protocols: LACP |
| Protocols: PAgP |
| Protocols: DHCP |
| Protocols: DTP |
| Protocols: RIP v2.0 |
| Protocols: MSTP |
| Protocols: OSPF |
| Protocols: RIP v1.0 |
| Protocols: ARP |
| Protocols: VTP |
| Protocols: TCP/IP |
| Protocols: CDPv1 |
| |
| |
| Temperature: -13 degrees F (-25.0 degrees C) to 158 degrees F (70.0 degrees C) Storage |
| Humidity: 10% to 85% Non-condensing Relative Humidity Operating |
| Altitude: 15000 ft Maximum Storage |
| Altitude: 10000 ft Maximum Operating |
| Thermal Dissipation: 563BTU/h |
| |
| |
| Dimensions: 2.59 Height x 17.5 Width x 11.6 Depth |
| |
| |
| Certifications & Standards:
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1x
- IEEE 802.3ad
- IEEE 802.3x: full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
- IEEE 802.1D: Spanning-Tree Protocol
- IEEE 802.1p: CoS Prioritization
- IEEE 802.1Q: VLAN
- IEEE 802.3: 10BASE-T specification
- IEEE 802.3u: 100BASE-TX specification
- IEEE 802.3ab: 1000BASE-T specification
- IEEE 802.3z: 1000BASE-X specification
- 1000BASE-X: (SFP)
- 1000BASE-SX
- 1000BASE-LX/LH
- 1000BASE-ZX
- RMON I and II standards
- SNMPv1, SNMPv2c, SNMPv3
- Safety certifications:
- UL to UL 60950, Third Edition
- C-UL to CAN/CSA C22.2 No. 60950-00, Third Edition
- TUV/GS to EN 60950:2000
- CB to IEC 60950 with all country deviations
- NOM to NOM-019-SCFI
- CE Marking
- Electromagnetic emissions certifications:
- FCC Part 15 Class A
- EN 55022: 1998 (CISPR22)
- EN 55024: 1998 (CISPR24)
- VCCI Class A
- AS/NZS 3548 Class A
- CE
- CNS 13438 Class A
- MIC
- Telco:
- CLEI code
- Management:
- BRIDGE-MIB
- CISCO-CDP-MIB
- CISCO-CLUSTER-MIB
- CISCO-CONF-MAN-MIB
- CISCO-ENTITY-FRU-CONTROL-MIB
- CISCO-ENVMON-MIB
- CISCO-FLASH-MIB
- CISCO-FTP-CLIENT-MIB
- CISCO-HSRP-MIB
- CISCO-HSRP-EXT-MIB
- CISCO-IGMP-FILTER-MIB
- CISCO-IMAGE-MIB
- CISCO-L2L3-INTERFACE-CONFIG-MIB
- CISCO-MAC-NOTIFICATION-MIB
- CISCO-MEMORY-POOL-MIB
- CISCO-PAGP-MIB
- CISCO-PING-MIB
- CISCO-PROCESS-MIB
- CISCO-RTTMON-MIB
- CISCO-STACK-MIB
- CISCO-STACKMAKER-MIB
- CISCO-STP-EXTENSIONS-MIB
- CISCO-SYSLOG-MIB
- CISCO-TCP-MIB
- CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB
- CISCO-VLAN-MEMBERSHIP-MIB
- CISCO-VTP-MIB
- ENTITY-MIB
- ETHERLIKE-MIB
- IF-MIB
- IGMP-MIB
- IPMROUTE-MIB
- OLD-CISCO-CHASSIS-MIB
- OLD-CISCO-FLASH-MIB
- OLD-CISCO-INTERFACES-MIB
- OLD-CISCO-IP-MIB
- OLD-CISCO-SYS-MIB
- OLD-CISCO-TCP-MIB
- OLD-CISCO-TS-MIB
- OSPF-MIB (RFC 1253)
- PIM-MIB
- RFC1213-MIB
- RFC1253-MIB
- RMON-MIB
- RMON2-MIB
- SNMP-FRAMEWORK-MIB
- SNMP-MPD-MIB
- SNMP-NOTIFICATION-MIB
- SNMP-TARGET-MIB
- SNMPv2-MIB
- TCP-MIB
- UDP-MIB
|
