| Number of Stacks: 9 |
| Address Table: 12K MAC Addresses |
| |
| |
| Manageable: Yes |
| |
| |
| Humidity: 10% to 85% Non-condensing Relative Humidity Operating |
| Altitude: 15000 ft Maximum Storage |
| Altitude: 10000 ft Maximum Operating |
| Thermal Dissipation: 205BTU/h |
| |
| |
| Performance: 13.1Mpps Forwarding Rate |
| |
| |
| Number of Expansion Slots: 4 |
| Expansion Slots: (4 Total) SFP (mini-GBIC) Uplink |
| Modules: Not Included |
| |
| |
| Flow Control: IEEE 802.3x (Full-duplex) |
| Layer Support: 2 to 3 |
| |
| |
| Additional Information:
- Up to 12 EtherChannel groups are supported per stack
- Up to 64 aggregate or individual policers are available per Fast Ethernet or Gigabit Ethernet port
- 11,000 unicast routes
- Configurable up to 1000 IGMP groups and multicast routes
- Configurable maximum transmission unit (MTU) of up to 9018 bytes (Jumbo frames) for bridging on Gigabit Ethernet ports, and up to 1546 bytes for bridging and routing on Fast Ethernet ports
- Acoustic noise: 42 decibels (dB)
|
| |
| |
| Management:
- Command-line interface (CLI)
- Cisco Cluster Management Suite (CMS) Software
- CiscoWorks
- IGMP snooping
- Up to 1024 VLANs per switch or stack and up to 128 spanning-tree instances per switch are supported
- 4000 VLAN IDs are supported
- Cisco Group Management Protocol (CGMP)
- RMON
- Trivial File Transfer Protocol (TFTP)
- Web browser setup utility allows one-click initialization for IP addresses and passwords
- SNMP v1, v2c, and v3
|
| Protocols: HSRP |
| Protocols: CDPv2 |
| Protocols: DVMRP |
| Protocols: DTP |
| Protocols: DHCP |
| Protocols: PAgP |
| Protocols: LACP |
| Protocols: CDPv1 |
| Protocols: TCP/IP |
| Protocols: VTP |
| Protocols: ARP |
| Protocols: RIP v1.0 |
| Protocols: Spanning Tree Protocol |
| Protocols: MSTP |
| Protocols: RIP v2.0 |
| Security Features:
- RADIUS
- TACACS+
- SSH
- VLANs
- 1000 access control entries (ACEs) are supported
- Authentication
- Port-level security
- Identity-based network services with 802.1x and extensions
|
| |
| |
| Standard Memory: 128MB |
| Flash Memory: 16MB |
| |
| |
| Operating System:
- Software Image: Standard Multilayer Image (SMI)
|
| |
| |
| Status Indicators: Per-port status LEDs:
- Link integrity
- Disabled
- Activity
- Speed
- Full-duplex indications
- System-status LEDs:
- System
- RPS
- Bandwidth-utilization indications
|
| |
| |
| MTBF: 217824Hour |
| |
| |
| Input Voltage: 110V AC |
| Input Voltage: 220V AC |
| Input Voltage Range: 100V AC to 127V AC |
| Frequency: 50 Hz or 60 Hz |
| Power Consumption: 60 W Maximum |
| Power Source: Power Supply |
| Redundant Power Supply: Yes |
| |
| |
| Temperature: 32 degrees F (0.0 degrees C) to 113 degrees F (45.0 degrees C) Operating |
| Temperature: -13 degrees F (-25.0 degrees C) to 158 degrees F (70.0 degrees C) Storage |
| |
| |
| Certifications & Standards:
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1x
- IEEE 802.3ad
- IEEE 802.3x: full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
- IEEE 802.1D: Spanning-Tree Protocol
- IEEE 802.1p: CoS Prioritization
- IEEE 802.1Q: VLAN
- IEEE 802.3: 10BASE-T specification
- IEEE 802.3u: 100BASE-TX specification
- IEEE 802.3ab: 1000BASE-T specification
- IEEE 802.3z: 1000BASE-X specification
- RMON I and II standards
- Safety certifications:
- UL to UL 60950, Third Edition
- C-UL to CAN/CSA C22.2 No. 60950-00, Third Edition
- TUV/GS to EN 60950:2000
- CB to IEC 60950 with all country deviations
- NOM to NOM-019-SCFI
- CE Marking
- Electromagnetic emissions certifications:
- FCC Part 15 Class A
- EN 55022: 1998 (CISPR22)
- EN 55024: 1998 (CISPR24)
- VCCI Class A
- AS/NZS 3548 Class A
- CE
- CNS 13438 Class A
- MIC
- Telco:
- CLEI code
- Management:
- BRIDGE-MIB
- CISCO-CDP-MIB
- CISCO-CLUSTER-MIB
- CISCO-CONF-MAN-MIB
- CISCO-ENTITY-FRU-CONTROL-MIB
- CISCO-ENVMON-MIB
- CISCO-FLASH-MIB
- CISCO-FTP-CLIENT-MIB
- CISCO-HSRP-MIB
- CISCO-HSRP-EXT-MIB
- CISCO-IGMP-FILTER-MIB
- CISCO-IMAGE-MIB
- CISCO-L2L3-INTERFACE-CONFIG-MIB
- CISCO-MAC-NOTIFICATION-MIB
- CISCO-MEMORY-POOL-MIB
- CISCO-PAGP-MIB
- CISCO-PING-MIB
- CISCO-PROCESS-MIB
- CISCO-RTTMON-MIB
- CISCO-STACK-MIB
- CISCO-STACKMAKER-MIB
- CISCO-STP-EXTENSIONS-MIB
- CISCO-SYSLOG-MIB
- CISCO-TCP-MIB
- CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB
- CISCO-VLAN-MEMBERSHIP-MIB
- CISCO-VTP-MIB
- ENTITY-MIB
- ETHERLIKE-MIB
- IF-MIB
- IGMP-MIB
- IPMROUTE-MIB
- OLD-CISCO-CHASSIS-MIB
- OLD-CISCO-FLASH-MIB
- OLD-CISCO-INTERFACES-MIB
- OLD-CISCO-IP-MIB
- OLD-CISCO-SYS-MIB
- OLD-CISCO-TCP-MIB
- OLD-CISCO-TS-MIB
- OSPF-MIB (RFC 1253)
- PIM-MIB
- RFC1213-MIB
- RFC1253-MIB
- RMON-MIB
- RMON2-MIB
- SNMP-FRAMEWORK-MIB
- SNMP-MPD-MIB
- SNMP-NOTIFICATION-MIB
- SNMP-TARGET-MIB
- SNMPv2-MIB
- TCP-MIB
- UDP-MIB
|
| |
| |
| Standard Warranty: Lifetime Limited |
| Parts Warranty/Labor: 5 Year - Fan & Power Supply |
| Additional Warranty Information: In the event of discontinuance of product manufacture, Cisco warranty support is limited to five (5) years from the announcement of discontinuance. |
| |
| |
| Manufacturer: Cisco Systems, Inc |
| Brand Name: Cisco |
| Product Line: Catalyst |
| Product Series: 3750 |

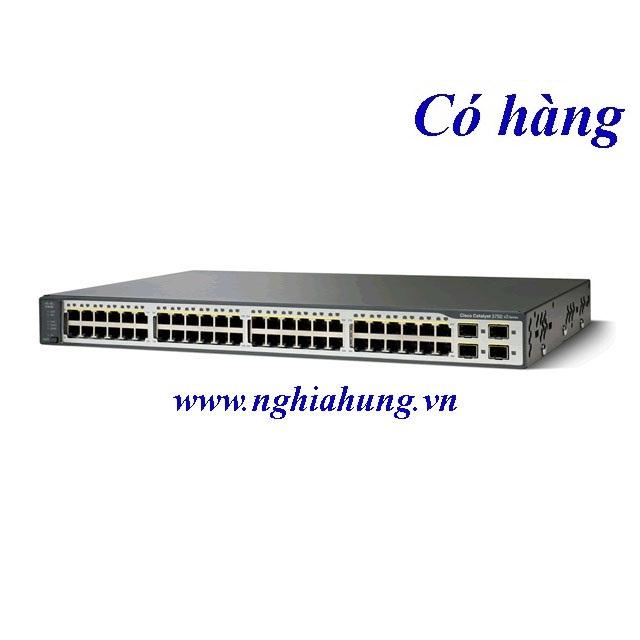

| Product Name: Catalyst 3750-48TS Ethernet Switch |
| Product Type: Ethernet Switch |
| |
| |
| Number of Ports: 48 |
| Fast Ethernet Port: Yes |
| Interfaces/Ports: 48 x RJ-45 10/100Base-TX LAN |
| Interfaces/Ports: 2 x Stack |
| Interfaces/Ports: 1 x RJ-45 Console Management |
| |
| |
| Connectivity Media: Category 4 UTP 10Base-T |
| Connectivity Media: Category 3 UTP 10Base-T |
| Connectivity Media: Category 5 UTP 10/100Base-TX |
| Performance: 32Gbps Backplane Speed |
| Performance: 38.7Mpps Stack Forwarding Rate for 64-byte Packet |
| |
| |
| Dimensions: 1.73 Height x 17.5 Width x 11.83 Depth |
| Shipping Dimensions: 9 Height x 16 Width x 22 Depth |
| Weight: 9.1lb |
| Shipping Weight: 16 lb |
