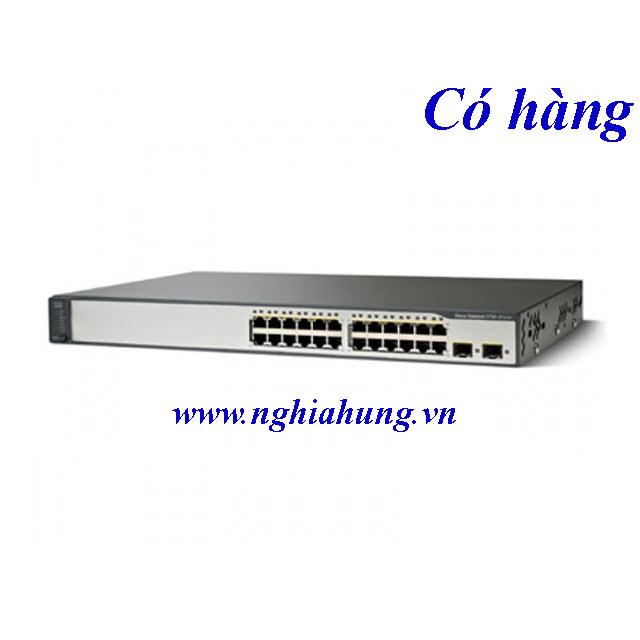

| WS-C3750-24TS-S data sheet |
| Manufacturer |
Cisco Systems, Inc |
| Manufacturer Part Number |
WS-C3750-24TS-S |
| Product Type |
Managed, Stackable 24 ports L3 Switch |
| Form Factor |
Fixed, Rack Mountable 1U, Stackable/Clustering |
| Switch Port density - Uplinks |
24 x 10/100 + 2 x SFP |
| MAC Address Table Size |
12K entries |
| Max Number of Stacks |
9 |
| Routing Protocol |
RIP-1, RIP-2, EIGRP, static IP routing, RIPng |
| Remote Management Protocol |
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH |
| Authentication Method |
Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Features |
Flow control, full duplex capability, Layer 3 switching, auto-sensing per device, IP-routing, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, stackable, IPv6 support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS) |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s |
| DRAM Memory |
128 MB |
| Flash Memory |
16 MB Flash |
| LED Status Lights Indicators |
Port status, link activity, port transmission speed, port duplex mode, bandwidth utilization %, status |
| Connectivity / Expansion Slots |
| Interfaces |
24 x 10Base-T/100Base-TX - RJ-45
1 x console - RJ-45 - management
Network stack device : 1 x x 2
2 x SFP (mini-GBIC) |
| Power Supply Specifications |
| Power Device |
Power supply - internal |
| Voltage Required |
AC 120/230 V ( 50/60 Hz ) |
| Power Consumption Operational |
45 Watt |
| Features |
Redundant Power System (RPS) connector |
| Dimensions / Weight / Miscellaneous |
| Width |
44.5 cm |
| Depth |
30 cm |
| Height |
4.4 cm |
| Weight |
3.6 kg |
| MTBF |
294,928 hour(s) |
| Compliant Standards |
CE, TUV GS, BSMI CNS 13438 Class A, CISPR 24, EN 60950, EN55022, VCCI Class A ITE, IEC 60950, EN55024, UL 60950 Third Edition, CISPR 22, CB, AS/NZ 3548 Class A, MIC, CSA C22.2 No. 60950 Third Edition |
| System Software |
| Software Included |
Cisco IOS IP Base |
| Manufacturer Warranty |
| Service & Support |
Limited lifetime warranty |
| Service & Support Details |
Limited warranty - lifetime |
