| Manufacturer: Cisco Systems, Inc |
| Brand Name: Cisco |
| Product Line: Catalyst |
| Product Series: 3750 |

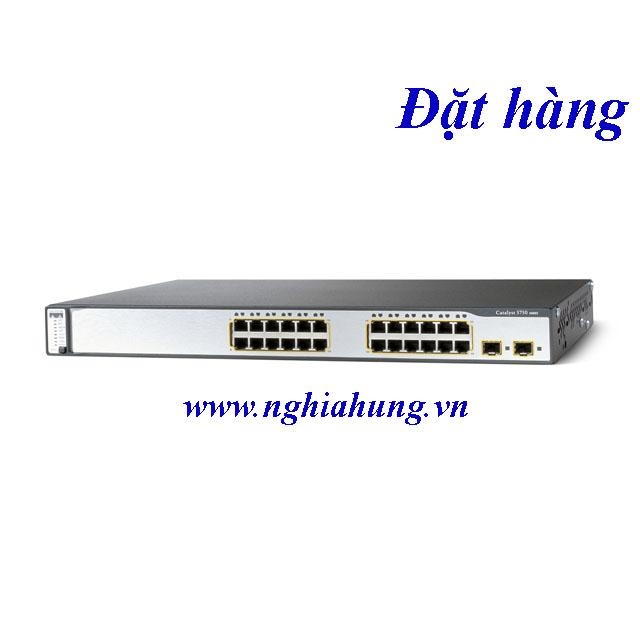

| Product Name: Catalyst 3750-24PS Stackable Ethernet Switch |
| Product Type: Stackable Ethernet Switch |
| |
| |
| Number of Ports: 24 |
| Fast Ethernet Port: Yes |
| Interfaces/Ports: 24 x RJ-45 10/100Base-TX LAN |
| Interfaces/Ports: 1 x RJ-45 Console Management |
| |
| |
| Connectivity Media: Category 4 UTP 10Base-T |
| |
| |
| Standard Memory: 128MB |
| Flash Memory: 16MB |
| |
| |
| Operating System:
- Enhanced Multilayer Image (EMI)
|
| |
| |
| Status Indicators: Per-port status LEDs:
- Link integrity
- Disabled
- Activity
- Speed
- Full-duplex indications
- System-status LEDs:
- System
- RPS
- Bandwidth-utilization indications
|
| |
| |
| MTBF: 209170Hour |
| |
| |
| Input Voltage: 110V AC |
| |
| |
| Certifications & Standards:
- IEEE 802.3u: 100BASE-TX specification
- IEEE 802.1s
- IEEE 802.3af
- IEEE 802.1w
- IEEE 802.1x
- IEEE 802.3ad
- IEEE 802.3x: full duplex on 10BASE-T, 100BASE-TX
- IEEE 802.1D: Spanning-Tree Protocol
- Management:
- BRIDGE-MIB
- CISCO-CDP-MIB
- CISCO-CLUSTER-MIB
- CISCO-CONF-MAN-MIB
- CISCO-ENTITY-FRU-CONTROL-MIB
- CISCO-ENVMON-MIB
- CISCO-FLASH-MIB
- CISCO-FTP-CLIENT-MIB
- CISCO-HSRP-MIB
- CISCO-HSRP-EXT-MIB
- CISCO-IGMP-FILTER-MIB
- CISCO-IMAGE-MIB
- CISCO-L2L3-INTERFACE-CONFIG-MIB
- CISCO-MAC-NOTIFICATION-MIB
- CISCO-MEMORY-POOL-MIB
- CISCO-PAGP-MIB
- CISCO-PING-MIB
- CISCO-PROCESS-MIB
- CISCO-RTTMON-MIB
- CISCO-STACK-MIB
- CISCO-STACKMAKER-MIB
- CISCO-STP-EXTENSIONS-MIB
- CISCO-SYSLOG-MIB
- CISCO-TCP-MIB
- CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB
- CISCO-VLAN-MEMBERSHIP-MIB
- CISCO-VTP-MIB
- ENTITY-MIB
- ETHERLIKE-MIB
- IF-MIB
- IGMP-MIB
- IPMROUTE-MIB
- OLD-CISCO-CHASSIS-MIB
- OLD-CISCO-FLASH-MIB
- OLD-CISCO-INTERFACES-MIB
- OLD-CISCO-IP-MIB
- OLD-CISCO-SYS-MIB
- OLD-CISCO-TCP-MIB
- OLD-CISCO-TS-MIB
- OSPF-MIB (RFC 1253)
- PIM-MIB
- RFC1213-MIB
- RFC1253-MIB
- RMON-MIB
- RMON2-MIB
- RMON I and II standards
- SNMPv1, SNMPv2c, SNMPv3
- SNMP-FRAMEWORK-MIB
- SNMP-MPD-MIB
- SNMP-NOTIFICATION-MIB
- SNMP-TARGET-MIB
- SNMPv2-MIB
- TCP-MIB
- UDP-MIB
- Safety Certifications:
- UL to UL 60950, Third Edition
- C-UL to CAN/CSA C22.2 No. 60950-00, Third Edition
- TUV/GS to EN 60950:2000
- CB to IEC 60950 with all country deviations
- NOM to NOM-019-SCFI
- CE Marking
- Electromagnetic Emissions Certifications:
- FCC Part 15 Class A
- EN 55022: 1998 (CISPR22)
- EN 55024: 1998 (CISPR24)
- VCCI Class A
- AS/NZS 3548 Class A
- CE
- CNS 13438 Class A
- MIC
- Telco:
- CLEI code
|
| |
| |
| Standard Warranty: Lifetime Limited |
| Parts Warranty/Labor: 5 Year - Fan and power supply |
| Additional Warranty Information:
- In the event of discontinuance of product manufacture, Cisco warranty support is limited to five (5) years from the announcement of discontinuance
|
| |
| |
| Input Voltage: 220V AC |
| Input Voltage Range: 100V AC to 127V AC |
| Input Current: 7.5A @ 12V DC |
| Frequency: 50 Hz or 60 Hz |
| Power Consumption: 495 W Maximum |
| Power Source: Power Supply |
| Redundant Power Supply: Yes |
| |
| |
| Temperature: 32 degrees F (0.0 degrees C) to 113 degrees F (45.0 degrees C) Operating |
| Temperature: -13 degrees F (-25.0 degrees C) to 158 degrees F (70.0 degrees C) Storage |
| Humidity: 10% to 85% Non-condensing Relative Humidity Operating |
| Altitude: 15000 ft Maximum Storage |
| Altitude: 10000 ft Maximum Operating |
| Thermal Dissipation: 426 BTU/h |
| |
| |
| Dimensions: 1.73 Height x 17.5 Width x 11.83 Depth |
| Shipping Dimensions: 8.75 Height x 16 Width x 22 Depth |
| Weight: 11.3lb |
| Shipping Weight: 17.5 lb |
| |
| |
| Additional Information:
- 11,000 unicast routes
- Configurable up to 1000 IGMP groups and multicast routes
- Configurable maximum transmission unit (MTU) of up to 9000 bytes,with a maximum Ethernet frame size of 9018 Bytes (Jumbo frames) for bridging on Gigabit Ethernet ports, and up to 1546 bytes for bridging and routing on Fast Ethernet ports
- Acoustic Noise: 42 dB
- The Cisco Catalyst 3750 Series stacks up to 9 switches as a single logical unit for a total of 468 Ethernet or Power over Ethernet 10/100 ports or 252 Ethernet 10/100/1000 ports, or 9 10Gigabit Ethernet ports. Individual 10/100 and 10/100/1000 and 10Gigabit Ethernet units may be joined in any combination to evolve with network needs
|
| |
| |
| Connectivity Media: Category 3 UTP 10Base-T |
| Connectivity Media: Category 5 UTP 10/100Base-TX |
| Distance Support: 328ft |
| Performance: 32Gbps Forwarding Bandwidth at Layer 2 and Layer 3 |
| Performance: 38.7Mpps Stack Forwarding Rate for 64-byte Packet |
| Performance: 6.5Mpps Forwarding Rate |
| |
| |
| Number of Expansion Slots: 2 |
| Expansion Slots: (2 Total) SFP (mini-GBIC) Uplink |
| Modules: Not Included |
| |
| |
| Flow Control: IEEE 802.3x (Full-duplex) |
| Layer Support: 2 to 3 |
| Number of Stacks: 9 |
| Address Table: 12K MAC Addresses |
| |
| |
| Manageable: Yes |
| Management:
- Command-line interface (CLI) for detailed configuration
- Cisco Cluster Management Suite (CMS) Software
- Web-based tool for quick configuration based on pre-set templates
- CiscoWorks for network-wide management
- SNMP v1, v2c, and v3
- Telnet
|
| Protocols: BGP v4 |
| Protocols: OSPF |
| Protocols: IGRP |
| Protocols: EIGRP |
| Protocols: TCP/IP |
| Protocols: CGMP |
| Protocols: CDPv2 |
| Protocols: CDPv1 |
| Protocols: TFTP |
| Protocols: NTP |
| Protocols: Spanning Tree Protocol |
| Protocols: PVST+ |
| Protocols: DHCP |
| Protocols: PAgP |
| Protocols: DTP |
| Protocols: LACP |
| Protocols: RSTP |
| Protocols: HSRP |
| Protocols: PVRST+ |
| Protocols: RIP v2.0 |
| Protocols: RIP v1.0 |
| Protocols: ARP |
| Protocols: MSTP |
| Protocols: IGMP |
| Protocols: VTP |
| Security Features:
- IEEE 802.1x allows dynamic, port-based security, providing user authentication
- VLANs
- Port-based ACLs (PACLs)
- Secure Shell (SSH) Protocol
- TACACS+
- RADIUS
- Spanning Tree Root Guard (STRG)
- Cisco CMS Software security wizards
|
