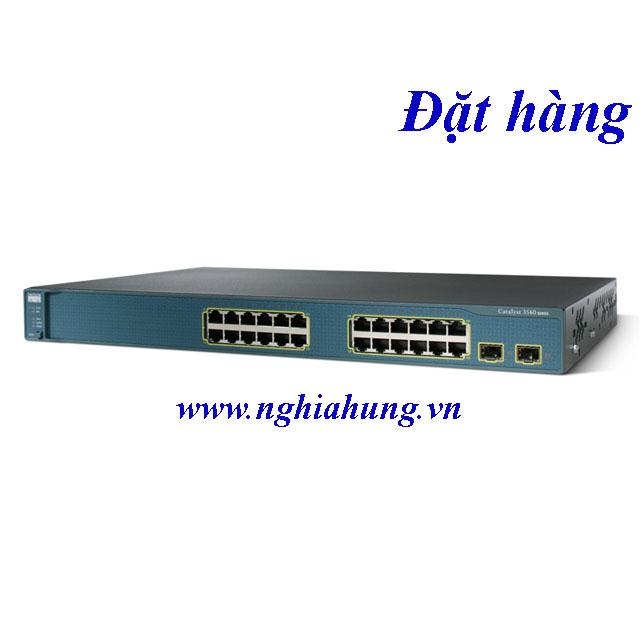

| WS-C3560V2-24TS-S data sheet |
| Manufacturer |
Cisco Systems, Inc |
| Manufacturer Part Number |
WS-C3560V2-24TS-S |
| Product Type |
Switch - 24 ports - L3 - Managed |
| Form Factor |
Rack mountable - 1U |
| Switch Ports |
24 x 10/100 + 2 x SFP |
| Performance |
Switching capacity : 32 Gbps |
| Capacity |
Switched virtual interfaces (SVIs) : up to 1000
Virtual interfaces (VLANs) : 1000 |
| MAC Address Table Size |
12K entries |
| Jumbo Frame Support |
9016 |
| Routing Protocol |
RIP-1, RIP-2, HSRP, static IP routing |
| Remote Management Protocol |
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH |
| Encryption Algorithm |
SSL |
| Authentication Method |
Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features |
Layer 3 switching, Layer 2 switching, auto-sensing per device, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Dynamic ARP Inspection (DAI), Time Domain Reflectometry (TDR), Per-VLAN Spanning Tree Plus (PVST+) |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Flash Memory |
32 MB Flash |
| LED Status Lights Indicators |
Link activity, port duplex mode, bandwidth utilization %, power, link OK, system |
| Connectivity Slots |
| Interfaces |
24 x 10Base-T/100Base-TX - RJ-45
1 x console - RJ-45 - management
2 x Ethernet 1000 - SFP (mini-GBIC) |
| Power Supply |
| Power Device |
Power supply - internal |
| Voltage Required |
AC 120/230 V ( 50/60 Hz ) |
| Features |
Redundant Power System (RPS) connector |
| Dimensions / Weight / Miscellaneous |
| Width |
44.3 cm |
| Depth |
29.5 cm |
| Height |
4.4 cm |
| Weight |
3.7 kg |
| MTBF |
377,260 hour(s) |
| Compliant Standards |
CE, GOST, CISPR 24, NOM, EN55024, EN55022 Class A, CISPR 22, EMC, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A |
| System Software |
| Software Included |
Cisco IOS IP Base |
