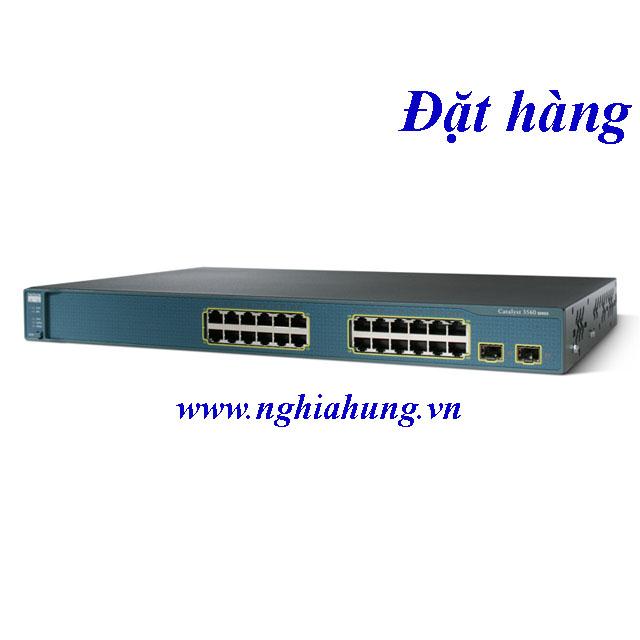

Thiết bị chuyển mạch switch cisco WS-C3560-24TS-S

• Link integrity
• Disabled
• Activity
• Speed
• Full-duplex indications

System-status LEDs:

• System
• RPS
• Link status
• Link duplex
• Link speed

• IEEE 802.1s
• IEEE 802.1w
• IEEE 802.1x
• IEEE 802.3ad
• IEEE 802.3x
• IEEE 802.1D Spanning Tree Protocol
• IEEE 802.1p CoS Prioritization
• IEEE 802.1Q VLAN
• IEEE 802.3 10BASE-T specification
• IEEE 802.3u 100BASE-TX specification
• IEEE 802.3ab 1000BASE-T specification
• IEEE 802.3z 1000BASE-X specification

Safety Certifications:

• UL to UL 60950, Third Edition
• C-UL to CAN/CSA C22.2 No. 60950-00, Third Edition
• TUV/GS to EN 60950:2000
• CB to IEC 60950 with all country deviations
• NOM to NOM-019-SCFI
• CE Marking

Electromagnetic Emissions Certifications:

• FCC Part 15 Class A
• EN 55022: 1998 (CISPR22)
• EN 55024: 1998 (CISPR24)
• VCCI Class A
• AS/NZS 3548 Class A
• CE
• CNS 13438 Class A
• MIC

MIB:

• BRIDGE-MIB
• CISCO-CDP-MIB
• CISCO-CLUSTER-MIB
• CISCO-CONFIG-MAN-MIB
• CISCO-ENTITY-FRU-CONTROL-MIB
• CISCO-ENVMON-MIB
• CISCO-FLASH-MIB
• CISCO-FTP-CLIENT-MIB
• CISCO-HSRP-MIB
• CISCO-HSRP-EXT-MIB
• CISCO-IGMP-FILTER-MIB
• CISCO-IMAGE-MIB
• CISCO-IP-STAT-MIB
• CISCO-L2L3-INTERFACE-CONFIG-MIB
• CISCO-MAC-NOTIFICATION-MIB
• CISCO-MEMORY-POOL-MIB
• CISCO-PAGP-MIB
• CISCO-PING-MIB
• CISCO-PROCESS-MIB
• CISCO-RTTMON-MIB
• CISCO-STP-EXTENSIONS-MIB
• CISCO-SYSLOG-MIB
• CISCO-TCP-MIB
• CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB
• CISCO-VLAN-MEMBERSHIP-MIB
• CISCO-VTP-MIB
• ENTITY-MIB
• ETHERLIKE-MIB
• IF-MIB
• IGMP-MIB
• IPMROUTE-MIB
• OLD-CISCO-CHASSIS-MIB
• OLD-CISCO-FLASH-MIB
• OLD-CISCO-INTERFACES-MIB
• OLD-CISCO-IP-MIB
• OLD-CISCO-SYS-MIB
• OLD-CISCO-TCP-MIB
• OLD-CISCO-TS-MIB
• OSPF-MIB (RFC 1253)
• PIM-MIB
• RFC1213-MIB
• RFC1253-MIB
• RMON-MIB
• RMON2-MIB
• SNMP-FRAMEWORK-MIB
• SNMP-MPD-MIB
• SNMP-NOTIFICATION-MIB
• SNMP-TARGET-MIB
• SNMPv2-MIB
• TCP-MIB
• UDP-MIB

• Advanced IP routing
• Configurable up to 11,000 unicast routes
• Configurable up to 1000 IGMP groups and multicast routes
• Acoustic Noise: 42dBa
• DC Input Voltages (RPS Input): 10.5A
• Power Rating: 0.075 kVA
• Telco: Common Language Equipment Identifier (CLEI) code
• Configurable maximum transmission unit (MTU) of up to 9000 bytes, with a maximum Ethernet frame size of 9018 bytes (Jumbo frames), for bridging on Gigabit Ethernet ports, and up to 1546 bytes for bridging of Multiprotocol Label Switching (MPLS) tagged frames on 10/100 ports.

QoS and Control:

• Advanced QoS
• Granular Rate Limiting: The Cisco Committed Information Rate (CIR) function guarantees bandwidth in increments as low as 8 kbps.

• Telnet
• policy management
• SNMPv1, SNMPv2c, and SNMPv3
• Command-line interface (CLI)
• Resource Manager Essentials
• Web-based management
• Cisco Network Assistant Software
• Four thousand VLAN IDs are supported
• CiscoWorks network-management software
• Management console port: RJ-45-to-DB-9 cable for PC connections
• Service Assurance Agent (SAA) support facilitates service-level management throughout the LAN.
• Up to 1024 VLANs per switch or stack and up to 128 spanning-tree instances per switch are supported
• Embedded Remote Monitoring (RMON) software agent supports four RMON groups (history, statistics, alarms, and events).
• Cisco Express Setup simplifies initial configuration of a switch through a Web browser, eliminating the need for more complex terminal emulation programs and CLI knowledge.
• VLAN trunks can be created from any port, using either standards-based 802.1Q tagging or the Cisco Inter-Switch Link (ISL) VLAN architecture.
• Remote SPAN (RSPAN) allows administrators to remotely monitor ports in a Layer 2 switch network from any other switch in the same network.

• Secure Shell (SSH) Protocol Version 2
• Two thousand access control entries (ACEs) are supported
• TACACS+ and RADIUS authentication enable centralized control of the switch
• IEEE 802.1x allows dynamic, port-based security, providing user authentication
• Port security secures the access to an access or trunk port based on MAC address
• Unicast MAC filtering prevents the forwarding of any type of packet with a matching MAC address.
• Cisco Network Assistant software security wizards ease the deployment of security features
• Port-based ACLs (PACLs) for Layer 2 interfaces allow application of security policies on individual switch ports.
• Cisco security VLAN ACLs (VACLs) on all VLANs prevent unauthorized data flows from being bridged within VLANs.
• Spanning-Tree Root Guard (STRG) prevents edge devices not in the network administrator's control from becoming Spanning Tree Protocol root nodes.
• Bidirectional data support on the Switched Port Analyzer (SPAN) port allows the Cisco Secure Intrusion Detection System(IDS) to take action when an intruder is detected.

• Standard Multilayer Software Image (SMI) installed
