Cisco WS-C3560-24PS-S Management & Protocols
|
Protocols: TFTP
Protocols: CGMP
Protocols: NTP
Protocols: IGMP v3
Protocols: MSTP
Protocols: ARP
Protocols: DVMRP
Protocols: RIP v1.0
Protocols: RIP v2.0
Protocols: UDLD
Protocols: RSTP
Protocols: TCP/IP
Protocols: FTP
Protocols: STP
Protocols: IGM |
|
Cisco WS-C3560-24PS-S General Information
|
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Catalyst
Product Series: 3560

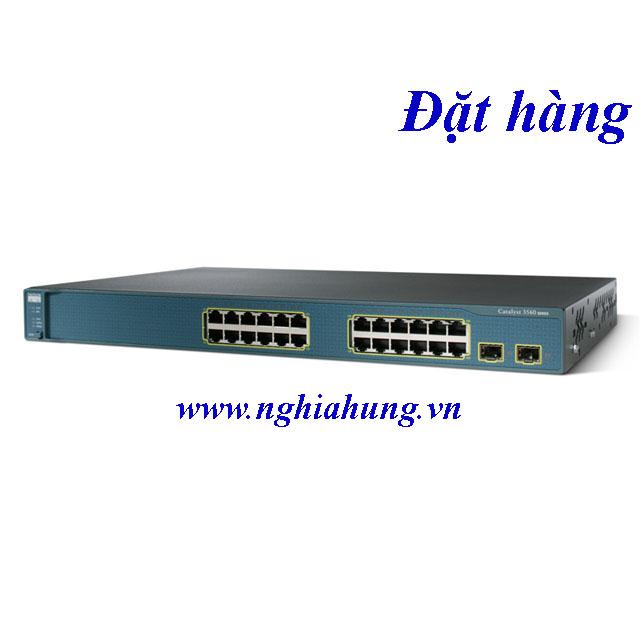

Product Name: Catalyst 3560-24PS Ethernet Switch
Product Type: Ethernet Switch |
|
Cisco WS-C3560-24PS-S Interfaces/Ports
|
Number of Ports: 24
Fast Ethernet Port: Yes
Interfaces/Ports: 24 x RJ-45 10/100Base-TX LAN |
|
Cisco WS-C3560-24PS-S Media & Performance |
Connectivity Media: Category 5 UTP 10/100Base-TX
Distance Support: 328ft
Performance: 8.8Gbps Switching Fabric
Performance: 6.6Mpps Forwarding Rate for 64-byte Packet
Performance: 4.4Gbps Forwarding Bandwidth at Layer 2 and Layer 3 |
|
Cisco WS-C3560-24PS-S I/O Expansions |
Number of Expansion Slots: 2
Expansion Slots: (2 Total) SFP (mini-GBIC)
Modules: Not Included |
|
Cisco WS-C3560-24PS-S Network & Communication
|
Flow Control: IEEE 802.3x (Full-duplex)
Layer Support: 2 to 4
Address Table: 12K MAC Addresses |
|
Cisco WS-C3560-24PS-S Management & Protocols |
Manageable: Yes
Management:
Cisco IOS CLI support
Cisco Intelligent Power Management
Switching Database Manager templates
Remote Switch Port Analyzer (RSPAN)
All nine RMON groups are supported
Domain Name System (DNS)
Network Timing Protocol (NTP) provides an accurate and consistent timestamp to all intranet switches
Cisco CMS Software |
|
Management: |
Certifications & Standards:
IEEE 802.1s
IEEE 802.1w
IEEE 802.1x
IEEE 802.3ad
IEEE 802.3af
IEEE 802.3x: full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
IEEE 802.1D: Spanning-Tree Protocol
IEEE 802.1p: CoS Prioritization
IEEE 802.1Q: VLAN
IEEE 802.3: 10BASE-T specification
IEEE 802.3u: 100BASE-TX specification
IEEE 802.3ab: 1000BASE-T specification
IEEE 802.3z: 1000BASE-X specification
1000BASE-X (SFP)
1000BASE-SX
1000BASE-LX/LH
1000BASE-ZX
1000BASE-CWDM SFP 1470 nm
1000BASE-CWDM SFP 1490 nm
1000BASE-CWDM SFP 1510 nm
1000BASE-CWDM SFP 1530 nm
1000BASE-CWDM SFP 1550 nm
1000BASE-CWDM SFP 1570 nm
1000BASE-CWDM SFP 1590 nm
1000BASE-CWDM SFP 1610 nm
RMON I and II standards
SNMPv1, SNMPv2c, SNMPv3 |
|
Management: |
BRIDGE-MIB
CISCO-CDP-MIB
CISCO-CLUSTER-MIB
CISCO-CONFIG-MAN-MIB
CISCO-ENTITY-FRU-CONTROL-MIB
CISCO-ENVMON-MIB
CISCO-FLASH-MIB
CISCO-FTP-CLIENT-MIB
CISCO-HSRP-MIB
CISCO-HSRP-EXT-MIB
CISCO-IGMP-FILTER-MIB
CISCO-IMAGE-MIB
CISCO-IP-STAT-MIB
CISCO-L2L3-INTERFACE-CONFIG-MIB
CISCO-MAC-NOTIFICATION-MIB
CISCO-MEMORY-POOL-MIB
CISCO-PAGP-MIB
CISCO-PING-MIB
CISCO-PROCESS-MIB
CISCO-RTTMON-MIB
CISCO-STP-EXTENSIONS-MIB
CISCO-SYSLOG-MIB
CISCO-TCP-MIB
CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB
CISCO-VLAN-MEMBERSHIP-MIB
CISCO-VTP-MIB
ENTITY-MIB
ETHERLIKE-MIB
IF-MIB
IGMP-MIB
IPMROUTE-MIB
OLD-CISCO-CHASSIS-MIB
OLD-CISCO-FLASH-MIB
OLD-CISCO-INTERFACES-MIB
OLD-CISCO-IP-MIB
OLD-CISCO-SYS-MIB
OLD-CISCO-TCP-MIB
OLD-CISCO-TS-MIB
OSPF-MIB (RFC 1253)
PIM-MIB
RFC1213-MIB
RFC1253-MIB
RMON-MIB
RMON2-MIB
SNMP-FRAMEWORK-MIB
SNMP-MPD-MIB
SNMP-NOTIFICATION-MIB
SNMP-TARGET-MIB
SNMPv2-MIB
TCP-MIB
UDP-MIB |
|
Safety Certifications: |
UL to UL 60950, Third Edition
C-UL to CAN/CSA C22.2 No. 60950-00, Third Edition
TUV/GS to EN 60950:2000
CB to IEC 60950 with all country deviations
NOM to NOM-019-SCFI
CE Marking |
|
Electromagnetic Emissions Certifications: |
FCC Part 15 Class A
EN 55022: 1998 (CISPR22)
EN 55024: 1998 (CISPR24)
VCCI Class A
AS/NZS 3548 Class A
CE
CNS 13438 Class A
MIC |
|
Electromagnetic Emissions Certifications: |
FCC Part 15 Class A
EN 55022: 1998 (CISPR22)
EN 55024: 1998 (CISPR24)
VCCI Class A
AS/NZS 3548 Class A
CE
CNS 13438 Class A
MIC |
|
Telco: |
CLEI code |
|
Cisco WS-C3560-24PS-S Original Manufacturer Warranty |
Standard Warranty: Lifetime Limited |
|
Cisco WS-C3560-24PS-S Power Description |
Input Voltage Range: 100V AC to 240V AC
Input Current: 5.5A @ 100V AC
Input Current: 2.8A @ 240V AC
Power Consumption: 485 W Maximum
Power Consumption: 370 W Maximum PCE
Power Source: Power Supply
Redundant Power Supply: Yes |
|
Cisco WS-C3560-24PS-S Interfaces/Ports |
Interfaces/Ports: 1 x RJ-45 Console Management |
|
Cisco WS-C3560-24PS-S Media & Performance |
Connectivity Media: Category 4 UTP 10Base-T
Connectivity Media: Category 3 UTP 10Base-T |
|
Cisco WS-C3560-24PS-S Management & Protocols |
Protocols: VTP
Protocols: LACP
Protocols: PVRST+
Protocols: PAgP
Protocols: DTP
Protocols: SMTP
Protocols: SAP
Protocols: CDP
Protocols: PVST+
Security Features:
IEEE 802.1x allows dynamic, port-based security, providing user authentication
Up to 1024 VLANs per switch or stack and up to 128 spanning-tree instances per switch are supported
Four thousand VLAN IDs are supported
Port-based ACLs (PACLs)
Unicast MAC filtering prevents the forwarding of any type of packet with a matching MAC address
SSHv2, Kerberos, and SNMPv3
TACACS+ and RADIUS authentication
Multilevel security on console access prevents unauthorized users from altering the switch configuration
Spanning-Tree Root Guard (STRG)
IGMP filtering
Cisco CMS Software security wizards
One thousand access control entries (ACEs) are supported |
|
Cisco WS-C3560-24PS-S Memory |
Standard Memory: 128MB
Flash Memory: 16MB |
|
Cisco WS-C3560-24PS-S Software |
Operating System: Standard Multilayer Software Image (SMI) installed |
|
Cisco WS-C3560-24PS-S Controls/Indicators |
Status Indicators:
Per-port status LEDs:
Link integrity
Disabled
Activity
Speed
Full-duplex indications
Power over Ethernet applied
Power over Ethernet error
Power over Ethernet disabled indications
System-status LEDs:
System
RPS
Link status
Link duplex
Link speed
Power over Ethernet indications |
|
Cisco WS-C3560-24PS-S Reliability |
MTBF: 224100Hour |
|
Cisco WS-C3560-24PS-S Power Description |
Input Voltage: 110V AC
Input Voltage: 220V AC |
|
Cisco WS-C3560-24PS-S Physical Characteristics |
Dimensions: 1.73 Height x 17.5 Width x 11.81 Depth
Shipping Dimensions: 9.5 Height x 17 Width x 23 Depth
Weight: 11.3lb
Shipping Weight: 16.6 lb |
|
Cisco WS-C3560-24PS-S Miscellaneous |
Additional Information:
Configurable up to 11,000 unicast routes
Configurable up to 1000 IGMP groups and multicast routes
Configurable maximum transmission unit (MTU) of up to 9018 bytes (Jumbo frames) for bridging on Gigabit Ethernet ports, and up to 1546 bytes for bridging of Multiprotocol Label Switching (MPLS) tagged frames on 10/100 ports
Power Rating: 0.485KVA |
|
Power over Ethernet (PCE): |
Maximum power supplied per port: 15.4W |
|
Acoustic Noise: |
ISO 7779: bystander position operating to an ambient temperature of 25 degrees C 42 dBa |
|
Cisco WS-C3560-24PS-S Environmental Conditions |
Temperature: 32 degrees F (0.0 degrees C) to 113 degrees F (45.0 degrees C) Operating
Temperature: -13 degrees F (-25.0 degrees C) to 158 degrees F (70.0 degrees C) Storage
Humidity: 10% to 85% Non-condensing Relative Humidity Operating
Altitude: 15000 ft Maximum Storage
Altitude: 10000 ft Maximum Operating
Thermal Dissipation: 393 BTU/h @ 115W Maximum |
