| Management:
- Cisco IOS CLI support
- Cisco Intelligent Power Management
- Switching Database Manager templates
- Remote Switch Port Analyzer (RSPAN)
- All nine RMON groups are supported
- Domain Name System (DNS)
- Network Timing Protocol (NTP) provides an accurate and consistent timestamp to all intranet switches
- Cisco CMS Software
|
| Protocols: TFTP |
| Protocols: CGMP |
| Protocols: OSPF |
| Protocols: NTP |
| Protocols: WCCP |
| Protocols: EIGRP |
| Protocols: RSTP |
| Protocols: UDLD |
| Protocols: RIP v2.0 |
| Protocols: RIP v1.0 |
| Protocols: DVMRP |
| Protocols: ARP |
| Protocols: MSTP |
| Protocols: IGMP v3 |
| Protocols: TCP/IP |
| Protocols: VTP |
| Protocols: IGMP |
| Protocols: STP |
| Protocols: FTP |
| Protocols: PVST+ |
| Protocols: CDP |
| Protocols: SAP |
| Protocols: SMTP |
| Protocols: DTP |
| Protocols: PAgP |
| Protocols: PVRST+ |
| Protocols: LACP |
| Security Features:
- IEEE 802.1x allows dynamic, port-based security, providing user authentication
- Up to 1024 VLANs per switch or stack and up to 128 spanning-tree instances per switch are supported
- Four thousand VLAN IDs are supported
- Port-based ACLs (PACLs)
- Unicast MAC filtering prevents the forwarding of any type of packet with a matching MAC address
- SSHv2, Kerberos, and SNMPv3
- TACACS+ and RADIUS authentication
- Multilevel security on console access prevents unauthorized users from altering the switch configuration
- Spanning-Tree Root Guard (STRG)
- IGMP filtering
- Cisco CMS Software security wizards
- One thousand access control entries (ACEs) are supported
|
| |
| |
| Standard Memory: 128MB |
| Flash Memory: 16MB |
| |
| |
| Operating System:
- Enhanced Multilayer Software Image (EMI) installed
|
| |
| |
| Status Indicators:
- Per-port status LEDs:
- Link integrity
- Disabled
- Activity
- Speed
- Full-duplex indications
- Power over Ethernet applied
- Power over Ethernet error
- Power over Ethernet disabled indications
- System-status LEDs:
- System
- RPS
- Link status
- Link duplex
- Link speed
- Power over Ethernet indications
|
| |
| |
| MTBF: 224100Hour |
| |
| |
| Input Voltage: 110V AC |
| Input Voltage: 220V AC |
| Input Voltage Range: 100V AC to 240V AC |
| Input Current: 5.5A @ 100V AC |
| Input Current: 2.8A @ 240V AC |
| Power Consumption: 485 W Maximum |
| Power Consumption: 370 W Maximum PCE |
| Power Source: Power Supply |
| Redundant Power Supply: Yes |
| |
| |
| Temperature: 32 degrees F (0.0 degrees C) to 113 degrees F (45.0 degrees C) Operating |
| Temperature: -13 degrees F (-25.0 degrees C) to 158 degrees F (70.0 degrees C) Storage |
| Humidity: 10% to 85% Non-condensing Relative Humidity Operating |
| Altitude: 15000 ft Maximum Storage |
| Altitude: 10000 ft Maximum Operating |
| |
| |
| Connectivity Media: Category 4 UTP 10Base-T |
| Connectivity Media: Category 3 UTP 10Base-T |
| Connectivity Media: Category 5 UTP 10/100Base-TX |
| Distance Support: 328ft |
| Performance: 8.8Gbps Switching Fabric |
| Performance: 4.4Gbps Forwarding Bandwidth at Layer 2 and Layer 3 |
| |
| |
| Certifications & Standards:
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1x
- IEEE 802.3ad
- IEEE 802.3af
- IEEE 802.3x: full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
- IEEE 802.1D: Spanning-Tree Protocol
- IEEE 802.1p: CoS Prioritization
- IEEE 802.1Q: VLAN
- IEEE 802.3: 10BASE-T specification
- IEEE 802.3u: 100BASE-TX specification
- IEEE 802.3ab: 1000BASE-T specification
- IEEE 802.3z: 1000BASE-X specification
- 1000BASE-X (SFP)
- 1000BASE-SX
- 1000BASE-LX/LH
- 1000BASE-ZX
- 1000BASE-CWDM SFP 1470 nm
- 1000BASE-CWDM SFP 1490 nm
- 1000BASE-CWDM SFP 1510 nm
- 1000BASE-CWDM SFP 1530 nm
- 1000BASE-CWDM SFP 1550 nm
- 1000BASE-CWDM SFP 1570 nm
- 1000BASE-CWDM SFP 1590 nm
- 1000BASE-CWDM SFP 1610 nm
- RMON I and II standards
- SNMPv1, SNMPv2c, SNMPv3
- Management:
- BRIDGE-MIB
- CISCO-CDP-MIB
- CISCO-CLUSTER-MIB
- CISCO-CONFIG-MAN-MIB
- CISCO-ENTITY-FRU-CONTROL-MIB
- CISCO-ENVMON-MIB
- CISCO-FLASH-MIB
- CISCO-FTP-CLIENT-MIB
- CISCO-HSRP-MIB
- CISCO-HSRP-EXT-MIB
- CISCO-IGMP-FILTER-MIB
- CISCO-IMAGE-MIB
- CISCO-IP-STAT-MIB
- CISCO-L2L3-INTERFACE-CONFIG-MIB
- CISCO-MAC-NOTIFICATION-MIB
- CISCO-MEMORY-POOL-MIB
- CISCO-PAGP-MIB
- CISCO-PING-MIB
- CISCO-PROCESS-MIB
- CISCO-RTTMON-MIB
- CISCO-STP-EXTENSIONS-MIB
- CISCO-SYSLOG-MIB
- CISCO-TCP-MIB
- CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB
- CISCO-VLAN-MEMBERSHIP-MIB
- CISCO-VTP-MIB
- ENTITY-MIB
- ETHERLIKE-MIB
- IF-MIB
- IGMP-MIB
- IPMROUTE-MIB
- OLD-CISCO-CHASSIS-MIB
- OLD-CISCO-FLASH-MIB
- OLD-CISCO-INTERFACES-MIB
- OLD-CISCO-IP-MIB
- OLD-CISCO-SYS-MIB
- OLD-CISCO-TCP-MIB
- OLD-CISCO-TS-MIB
- OSPF-MIB (RFC 1253)
- PIM-MIB
- RFC1213-MIB
- RFC1253-MIB
- RMON-MIB
- RMON2-MIB
- SNMP-FRAMEWORK-MIB
- SNMP-MPD-MIB
- SNMP-NOTIFICATION-MIB
- SNMP-TARGET-MIB
- SNMPv2-MIB
- TCP-MIB
- UDP-MIB
- Safety Certifications:
- UL to UL 60950, Third Edition
- C-UL to CAN/CSA C22.2 No. 60950-00, Third Edition
- TUV/GS to EN 60950:2000
- CB to IEC 60950 with all country deviations
- NOM to NOM-019-SCFI
- CE Marking
- Electromagnetic Emissions Certifications:
- FCC Part 15 Class A
- EN 55022: 1998 (CISPR22)
- EN 55024: 1998 (CISPR24)
- VCCI Class A
- AS/NZS 3548 Class A
- CE
- CNS 13438 Class A
- MIC
- Telco:
- CLEI code
|
| |
| |
| Standard Warranty: Lifetime Limited |
| |
| |
| Manufacturer: Cisco Systems, Inc |
| Brand Name: Cisco |
| Product Line: Catalyst |
| Product Series: 3560 |

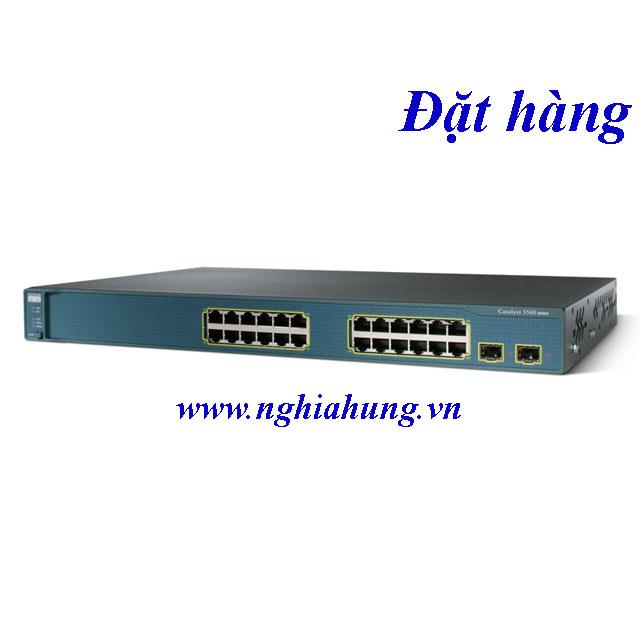

| Product Name: Catalyst 3560-24PS Ethernet Switch |
| Product Type: Ethernet Switch |
| |
| |
| Number of Ports: 24 |
| Fast Ethernet Port: Yes |
| Interfaces/Ports: 24 x RJ-45 10/100Base-TX LAN |
| Interfaces/Ports: 1 x RJ-45 Console Management |
| |
| |
| Performance: 6.6Mpps Forwarding Rate for 64-byte Packet |
| |
| |
| Number of Expansion Slots: 2 |
| Expansion Slots: (2 Total) SFP (mini-GBIC) |
| Modules: Not Included |
| |
| |
| Flow Control: IEEE 802.3x (Full-duplex) |
| Layer Support: 2 to 4 |
| Address Table: 12K MAC Addresses |
| |
| |
| Manageable: Yes |
| |
| |
| Thermal Dissipation: 393 BTU/h @ 115W Maximum |
| |
| |
| Dimensions: 1.73 Height x 17.5 Width x 11.81 Depth |
| Shipping Dimensions: 9 Height x 16 Width x 22 Depth |
| Weight: 11.3lb |
| Shipping Weight: 16.72 lb |
| |
| |
| Additional Information:
- Configurable up to 11,000 unicast routes
- Configurable up to 1000 IGMP groups and multicast routes
- Configurable maximum transmission unit (MTU) of up to 9018 bytes (Jumbo frames) for bridging on Gigabit Ethernet ports, and up to 1546 bytes for bridging of Multiprotocol Label Switching (MPLS) tagged frames on 10/100 ports
- Power Rating: 0.485KVA
- Power over Ethernet (PCE):
- Maximum power supplied per port: 15.4W
Acoustic Noise:
- ISO 7779: bystander position operating to an ambient temperature of 25degrees C
- 42 dBa
|
