| Additional Information:
Environmental Operating Ranges:
|
| Certifications & Standards:
|
| |
| |
| Standard Warranty: 90 Day |
| |
| |
| Manufacturer: Cisco Systems, Inc |
| Brand Name: Cisco |
| Product Line: ASA |
| Product Series: 5500 |

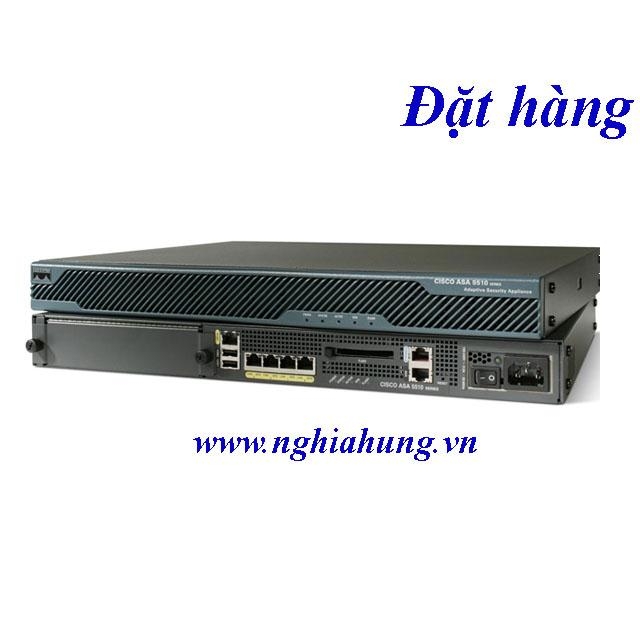

| Product Name: ASA 5510 VPN/Firewall |
| Product Type: VPN/Firewall |
| |
| |
| Number of Ports: 5 |
| Interfaces/Ports: 1 x Auxiliary Management |
| Interfaces/Ports: 1 x Console Management |
| Interfaces/Ports: 2 x USB USB 2.0 |
| Interfaces/Ports: 1 x Management |
| Interfaces/Ports: 3 x RJ-45 10/100Base-TX |
| |
| |
| Virtualization: 32000 Concurrent Sessions |
| Virtualization: 6000 Concurrent Sessions |
| Virtualization: 250 IPSec VPN Peers |
| Virtualization: 250 Web VPN Peers |
| Firewall Protection: Intrusion Protection |
| Firewall Protection: Antivirus |
| Firewall Protection: Worm Scanning |
| Firewall Protection: Access Control |
| Firewall Protection: Virus Protection |
| Firewall Protection: Malware Protection |
VPN Support:
- Scalable IPSec and SSL VPN services
- Remote user/site connectivity
- Encryption: 3DES/AES
- Scalable IPSec and SSL VPN services
- Remote user/site connectivity
- Encryption: 3DES/AES
|
| License Type: Unlimited Users License |
| |
| |
| VPN Throughput: 170Mbps |
| Firewall Throughput: 300 Mbps |
| |
| |
| Number of Expansion Slots: 2 |
| Expansion Slots: (1 Total) CompactFlash (CF) Card |
| Expansion Slots: (1 Total) SSM |
| |
| |
| Protocols: IPSec |
| Protocols: TCP/IP |
| Management:
Cisco Adaptive Security Device Manager |
| |
| |
| Processor: Intel Celeron 1.6GHz |
| |
| |
| Standard Memory: 256 MB |
| Memory Technology: DRAM |
| Flash Memory: 64 MB |
| |
| |
| Status Indicators:
Front Panel LEDs:
- Power
- Status
- Active
- VPN
- Flash
Rear Panel LEDs:
- 2 x Power indicator
- VPN
- Flash
- Status indicator
- Active
|
| |
| |
| Input Voltage: 110 V AC |
| Input Voltage: 220 V AC |
| Input Voltage Range: 100V AC to 240V AC |
| Input Current: 3 A |
| Frequency: 47 Hz to 63 Hz |
| Power Consumption: 150 W Standard |
| Power Consumption: 190 W Maximum |
| Power Source: Power Supply |
| |
| |
| Temperature: 0 degrees C (32.0 degrees F) to 40 degrees C (104.0 degrees F) Operating |
| Temperature: -25 degrees C (-13.0 degrees F) to 70 degrees C (158.0 degrees F) Non-operating |
| Humidity: 5 to 95% Non-condensing Relative Humidity Operating |
| Altitude: 0 ft to 9842.52 ft - Operating |
| Thermal Dissipation: 648 BTU/h Maximum |
| |
| |
| Compatible Rack Unit: 1U |
| Form Factor: Rack-mountable |
| Form Factor: Desktop |
| Dimensions: 1.75 Height x 17.5 Width x 13.2 Depth |
| Weight: 20 lb |
