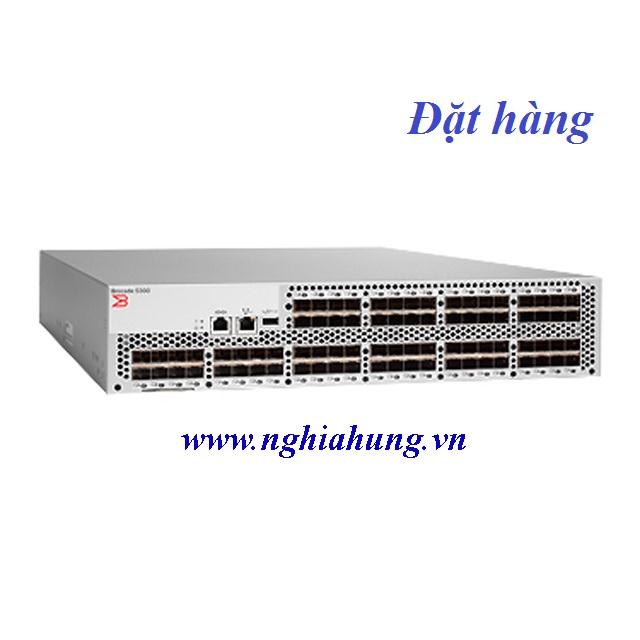

San Switch EMC DS5300B

Specifications
System Architecture
Fibre Channel Standards
FC-PH, FC-PH-2, FC-PH-3, FC-GS-2, FC-FLA, FC-FG, FC-SW3
Fibre Channel Ports
80 universal (E, F, M, FL, or N) ports; 48-port base with 16-port increments
Certified Maximum
Single FOS fabric: 56 domains, 19 hops
Single M-EOS fabric: 31 domains, 3 hops
Performance
Full line-speed switching at:
•  2.125 Gb/s line speed, full duplex
•  4.25 Gb/s line speed, full duplex
•  8.50 Gb/s line speed, full duplex
Auto-sensing of 2, 4, and 8 Gb/s port speeds
Optionally programmable to fixed port speed
Speed matching between 2, 4, and 8 Gb/s ports
ISL Trunking
Frame-based trunking with up to eight 8 Gb/s ports per ISL trunk with optional license; up to 68Gb/s per ISL trunk (8 ports × 8.5 Gb/s (line rate)
Exchange-based load balancing across ISLs with DPS included in Fabric OS
Aggregate Bandwidth
1360 Gb/s: 80 ports × 8.5 Gb/s (line rate) × 2 (full duplex)
Maximum Fabric Latency
Locally switched ports 700 ns with no contention, cut-through routing at 8 Gb/s between locally switched groups
Maximum Frame Size
2,112-byte payload
Frame Buffers
1,460 dynamically allocated, 268 maximum per port
Classes of Service
Class 2, Class 3, Class F (Interswitch Frames)
Port Types
FL_Port, F_Port, M_Port (Mirror Port), E_Port, EX_Port (Fibre Channel Integrated Routing); self-discovery based on switch type (U_Port); optional port type control
Data Traffic Types
Fabric switches supporting unicast, multicast (255 groups), and broadcast
Media Types
4 Gb/s: Requires Connectrix hot-pluggable, Small Form-factor-Pluggable (SFP), LC connector; 4 Gb/s Short-Wave-length Laser (SWL); 4 Gb/s Long-Wavelength Laser (LWL); 4 Gb/s Extended Long-Wavelength Laser (ELWL); distance depends on fiber-optic cable and port speed
8 Gb/s: Requires Connectrix hot-pluggable SFP+, LC connector; Short-Wavelength Laser (SWL); 8 Gb/s Long-Wavelength Laser (LWL); distance depends on fiber-optic cable and port speed
USB
1 USB port for firmware download, support save, and configuration upload/download
Fabric Services
Simple Name Server (SNS); Registered State Change Notification (RSCN); NTP v3; Reliable Commit Service (RCS); Dynamic Path Selection (DPS); Brocade Advanced Zoning (default zoning, port/WWN zoning, broadcast zoning); NPIV; N_Port Trunking; FDMI; Management Server; FSPF; Fabric Watch; Extended Fabrics; ISL Trunking; Advanced Performance Monitoring; Adaptive Networking (per data flow QoS, Ingress Rate Limiting, Traffic Isolation, Top Talkers; licensing varies); IPoFC, Frame Redirection; Port Fencing; BB credit recovery
FICON
FICON, FICON cascading (FOS and M-EOS), and FICON CUP
Connectivity Management
Interface
Telnet, HTTP, SNMP v1/v3 (FE MIB, FC Management MIB); Auditing, Syslog, Change Management tracking; EZSwitchSetup wizard; Web Tools; EMC Connectrix Manager Standard/Enterprise 9.x (optional); Fabric Manager (optional: FOS environments only); SMI-S compliant, SMI-S scripting toolkit, Administrative Domains; trial licenses for select add-on capabilities
Management Access
Call-home integration
10/100 Ethernet (RJ-45), in-band over Fibre Channel; serial port (RJ-45); USB; call-home integration enabled through Connectrix Manager and Fabric Manager
Security
SSL, SSH v2, HTTPS, LDAP, RADIUS, Role-Based Access Control (RBAC), DHCHAP (between switches and end devices), Port Binding, Switch Binding, Secure RPC, Secure Copy (SCP), Trusted Switch, IPSec, IP Filtering
Compatibility
All Connectrix B Series switches and directors
Diagnostics
POST and embedded online/offline diagnostics, including RAStrace logging, environmental monitoring, non-disruptive daemon restart, FCping and Pathinfo (FC traceroute), port mirroring (SPAN port)
Physical Specifications
Enclosure
Non-port to port-side airflow; 2 U, 19-inch EIA-compliant, power from non-port side
Size
Width: 42.88 cm (16.88 in)
Height: 8.60 cm (3.4 in)
Depth: 61.05 cm (24.00 in)
System Weight: 15.6 kg (34.4 lb) with dual power supplies, without SFP/SFP+ media
Environmental Specifications
Temperature
Operating: 0° C to 40° C (32° F to 104° F)
Non-operating: –25° C to 70° C (–13° F to 158° F)
Relative Humidity
Operating: 10% to 85% non-condensing
Non-operating and storage (non-condensing): 10% to 95% non-condensing
Altitude (feet/meters)
Operating: Up to 3,000 meters (9,842 feet)
Storage: Up to 12 kilometers (39,370 feet)
Shock
Operating: 20 G, 6 ms, half-sine
Non-operating: Half-sine, 33G 11 ms, 3/eg Axis
Vibration
Operating: 0.5 g sine, 0.4 grms random, 5 to 500 Hz
Non-operating: 2.0 g sine, 1.1 grms random, 5 to 500 Hz
Heat Dissipation
Maximum 80 ports: 939 BTU/hr
CO2 Emissions
1,012 kg per year (with 8 ports at 0.42 kg/kWh)
1.58 kg per Gb/s per year
Airflow
Maximum 609 CFM (cu. ft./min); nominal 44 CFM
Power Requirements
Power Inlet
C13
Input Voltage
85 to 264 VAC nominal
Frequency
47 to 63 Hz
Inrush Current
Maximum of 38 amps for period between 10 to 150 ms at 50° C (122° F)
Power Consumption
Nominal 260 watts; maximum 275 watts with 80 ports at 8 Gb/s
