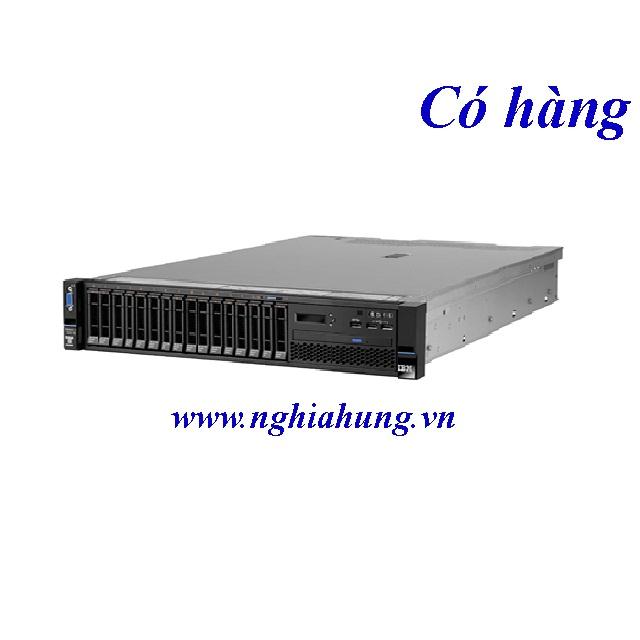

Máy Chủ Lenovo System X3650 M5 - CPU 1x E5-2630 v3 / Ram 16GB / Raid M5210 / 2x PS

Máy Chủ Lenovo System® X3650 M5 (5462-D2A) E5-2630 v3

CPU: 1x 8 Core E5-2630 v3 (2.4Ghz, 20M Cache)
RAM: 16GB RDIMM, DDR4 ECC
HDD: Option HDD SAS/SATA 2.5"
DVD: Option (Chưa kèm)
RAID: IBM ServeRAID M5210 Raid (0,1,10)
NIC: Quad port 1GB Gigabit Ethernet
Rail kit: Option (Chưa kèm)
Power Supply: 2x PS (2/2)
Hàng nhập trực tiếp từ Mỹ.
" Hãy liên hệ với chúng tôi để có giá tốt nhất "

Components

Specification

Form factor

2U Rack.

Processor Server IBM X3650 M5 E5-2630v3

Up to two Intel Xeon processor E5-2600 v3 product family CPUs with 18 or 16 cores (2.3 GHz core speeds); or 14, 12, or 10 cores (up to 2.6 GHz core speeds); or 8 cores (up to 3.2 GHz core speeds); or 6 cores (up to 3.4 GHz core speeds); or 4 cores (up to 3.5 GHz core speeds). Two QPI links up to 9.6 GT/s each. Up to 2133 MHz memory speed. Up to 45 MB L3 cache.

Chipset

Intel C612.

Memory Server IBM X3650 M5 E5-2630v3

Up to 24 DIMM sockets (12 DIMMs per processor). RDIMMs and LRDIMMs are supported. Memory types cannot be intermixed. Memory speed up to 2133 MHz.

Memory maximums

With RDIMMs: Up to 384 GB with 24x 16 GB RDIMMs and two processors

With LRDIMMs: Up to 1.5 TB with 24x 64 GB LRDIMMs and two processors (support for 64 GB LRDIMMs is planned for a later date)

Memory protection

ECC and Chipkill.

Disk drive bays

Up to 26x 2.5" hot-swap SAS/SATA drive bays, or up to 14x 3.5" + 2x 2.5" hot-swap SAS/SATA drive bays, or up to 16x 2.5" Simple Swap SATA bays, or up to 8x 3.5" Simple Swap SATA bays.

Maximum internal storage

Up to 46.8 TB with 1.8 TB 2.5" SAS HDDs, or up to 26 TB with 1 TB 2.5" NL SAS/SATA HDDs, or up to 41.6 TB with 1.6 TB 2.5" SAS SSDs, or up to 87.6 TB with 6 TB 3.5" NL SAS/SATA HDDs and 1.8 TB 2.5" SAS HDDs. Intermix of SAS/SATA is supported.

Storage controller

Onboard 6 Gb SATA: no RAID support 12 Gb SAS/SATA RAID: RAID 0, 1, 10 with M1215 or M5210. Optional upgrade to RAID 5, 50 is available for M1215. Optional upgrade to RAID 5, 50 is available for M5210 (zero-cache; 1 GB non-backed cache; 1 GB, 2 GB or 4 GB flash-backed cache). Optional upgrade to RAID 6, 60 is available for M5210 with memory cache upgrades.

12 Gb SAS/SATA non-RAID: N2215 HBA

Optical drive bays

One for models with 8x 3.5" or up to 16x 2.5" drive bays (models with 24x 2.5" or 12x 3.5" drive bays do not support an internal optical drive). Support for DVD-ROM or Multiburner.

Tape drive bays

None.

Network interfaces Server IBM X3650 M5 E5-2630v3

Four integrated RJ-45 Gigabit Ethernet 1000BASE-T ports (BCM5719), optional Mezzanine LOM (ML2) slot for dual-port 10 GbE cards with SFP+ or RJ-45 connectors or quad-port GbE cards with RJ-45 connectors.
