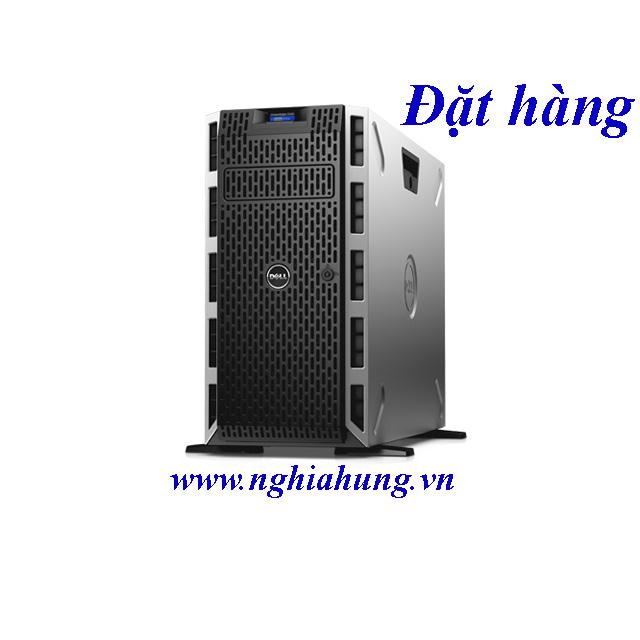

Máy Chủ Dell PowerEdge T630 - CPU E5-2609 v3 / Ram 8GB / HDD 1x 1TB / DVD ROM / Raid H330 / 1x PS

Máy Chủ Dell PowerEdge T630 CPU E5-2609 v3

CPU: 1x 6 Core E5-2609 v3 (1.9GHz, 15M Cache)
RAM: 8GB RDIMM, 2133MT/s, Single Rank, x8 Data Width
HDD: 1x Dell 1TB Enterprise SATA 3.5'' 7.2K
DVD: DVD ROM
RAID: PERC H330 Support Raid (0,1,5,10)
NIC: Broadcom Dual-port Gigabit Ethernet
Power Supply: 1x PS Hot-plug (1/2)
Hàng nhập khẩu trực tiếp từ Mỹ.
" Hãy liên hệ với chúng tôi để có giá tốt nhất "

Form factor

Tower (5U rack)

Processors Server Dell T630 E5-2609v3

Intel® Xeon® E5 2600 v3 processors

Processor sockets

2

Chipset

Intel C610

Memory Server Dell T630 E5-2609v3

24 DIMM slots, DDR4 memory
Architecture: Up to 2133MHz MHz DDR4 DIMMs
Memory Type: RDIMM&LRDIMM
Memory Module Sockets: Twenty Four
Minimum RAM: 2 GB (one module)
Maximum RAM: Up to 1536GB (24 DIMM slots): 2GB/4GB/8GB/16GB/32GB/64GB

PCIe slots

Slot 1: Full Length, Full Height, CPU1 - PCIe Gen3 x16 (x16 connector)
Slot 2: Full Length, Full Height, PCH - PCIe Gen2 x4 (x8 connector)
Slot 3: Full Length, Full Height, CPU1 - PCIe Gen3 x16 (x16 connector)
Slot 4: Half Length, Full Height, CPU2 - PCIe Gen3 x8 (x8 connector)
Slot 5: Full Length, Full Height, CPU2 - PCIe Gen2 (DMI) x4 (x8 connector)
Slot 6: Full Length, Full Height, CPU2 - PCIe Gen3 x16 (x16 connector)
Slot 7: Full Length, Full Height, CPU2 - PCIe Gen3 x16 (x16 connector)
Slot 8: Half Length, Full Height, CPU1 - PCIe Gen3 x8 (x8 connector)

RAID controller Server Dell T630 E5-2609v3

Internal:
PERC S130
PERC H330
PERC H730
PERC H730P
External:
PERC H830

Hard  drives (hot-plug)

SAS, SATA, Near-line SAS, SSD, PCIe SSD:
18 x 3.5" HDD – up to 72TB via 4TB hot-plug SAS hard drives
32 x 2.5” HDD – up to 32TB via 1TB hot-plug SAS hard drives
Up to 4 optional Express Flash PCIe SSD’s

Hard drive options:
Internal hard drive bay and hot-plug backplane:
Up to 8 x 3.5” SAS, SATA, Near-Line SAS,SSD, PCIe SSD drives with optional flex bay
Up to 18 x 3.5” SAS, SATA, Near-Line SAS,SSD drives without optional flex bay
Up to 16 x 2.5” SAS, SATA, Near-line SAS, SSD, PCIe SSD drives with optional flex bay
Up to 32 x 2.5” SAS, SATA, Near-Line SAS,SSD drives with optional flex bay

Feature

Specification

Power supply Server Dell T630 E5-2609v3

1600W AC, 86 mm 13G (Platinum+)
1100W AC, 86 mm 13G (Platinum+)
1100W DC, 86 mm 12G (Gold)
750W AC, 86 mm 12G (Platinum)
750W AC, 86 mm 12G (Diamond)
495W AC, 86 mm 12G (Platinum)

Availability

ECC memory
Hot-plug hard drives
Hot-plug redundant cooling
Hot-plug redundant power
iDRAC8
Internal Dual SD Module
Single Device Data Correction (SDDC)
Spare Rank
Tool-less chassis
Support for high availability clustering and virtualization
Proactive systems management alerts
iDRAC8 with Lifecycle Controller

Management

Dell OpenManage portfolio of systems management solutions, including:
OpenManage Essentials console
iDRAC8 with Lifecycle Controller
Dell OpenManage Plug-in for Oracle® Database Manager

Operating systems Server Dell T630 E5-2609v3

Microsoft Windows® Server 2008/2012 SP2, x86/x64 (x64 includes Hyper-VTM )
Microsoft Windows® Server 2008/2012 R2, x64 (includes Hyper-VTM v2)
Microsoft® Windows® HPC Server 2008
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux
VMware® ESX
