Máy Chủ Dell PowerEdge T550 - CPU Gold 5320 / Ram 16GB / Raid H345 / 1x PS

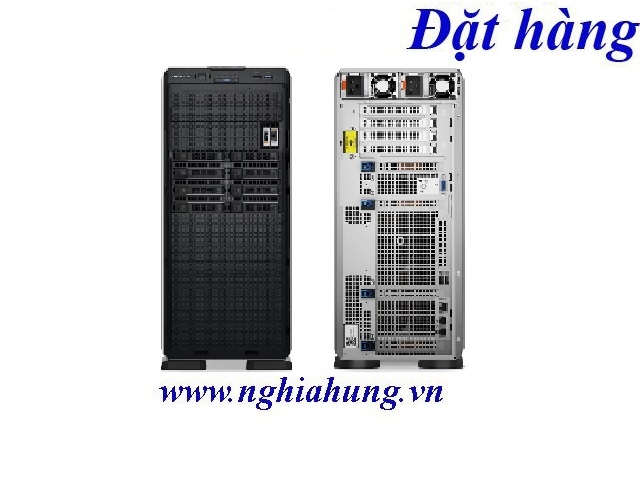

Máy Chủ Dell PowerEdge T550

CPU: 1x 26 Core Gold 5320 (2.2Ghz, 39M Cache)
RAM: 16GB DDR4 ECC RDIMMs
HDD: Option HDD SAS/SATA
DVD: Option (Chưa kèm)
RAID: Dell Perc H345 (Raid 0,1,5,10..)
NIC: Dual Port Ethernet  1G
Power Supply: 1x PS
Hàng nhập trực tiếp từ Mỹ.
"Hãy liên hệ với chúng tôi để có giá tốt nhất"

Feature

Server Dell PowerEdge T550 technical specification

Processors Server Dell T550

Up to two 3rd Generation Intel Xeon Scalable processors with up to 36 cores

Processor sockets

2

Memory Server Dell T550

DIMM Speed
● Up to 3200 MT/s Memory Type
● RDIMM Memory module slots
● 16 DDR4 DIMM slots ● Supports registered ECC DDR4 DIMM slots only Maximum RAM
● RDIMM 2 TB

PCIe

3x PCIe Gen4 slots (all x16) + 1x PCIe Gen3 slot (x8) + Upsell: up to 2 PCIe x16 DW for GPU

RAID controller Server Dell T550

Internal controllers:
PERC H345, PERC H745, PERC H755, H755N, HBA355i
● Internal Boot: Internal Dual SD Module or Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs or USB
● External Controller (RAID): PERC H840
● External HBAs (non-RAID): HBA355e
● Software RAID: S150

Drive bays

Front bays:
● Up to 8 x 2.5-inch SAS/SATA (hard drive) max 120 TB
● 16 x 2.5-inch SAS/SATA (HDD) max 240 TB
● 24 x 2.5-inch SAS/SATA (HDD)max 360 TB
● 8 x 3.5-inch SAS/SATA (HDD/SAS) max 120 TB
● 8 x 3.5-inch SAS/SATA (HDD) + 8 x 2.5- inch NVMe (SSD) max 240 TB

Embedded NIC

2 x 1 GbE LOM

Power supply Server Dell T550

● 600 W Platinum AC/100 - 240 V
● 600 W DC/240 V
● 800 W Platinum AC/100 - 240 V
● 800 W DC/240 V
● 1100 W Titanium AC/100 - 240 V
● 1100 W DC/240 V ● 1100 W DC/-48-(-60) V
● 1400 W Platinum AC/100 - 240 V
● 1400 W DC/240 V
● 2400 W Platinum AC/100 - 240 V
● 2400 W DC/240 V

Ports

Front Ports There are 2 SKUs:
● Base: Status LED only ○ 1 x USB 2.0 ○ 1 x USB 3.0 Upsell: Status LED only and Quick Sync 2
● 1 x USB 2.0
● 1 x USB 3.0
● 1 x iDRAC Direct (Micro-AB USB) port Rear Ports
● 1 x USB 2.0
● 1 x iDRAC Direct (Micro-AB USB) port
● 1 x USB 3.0
● 2 x Ethernet
● 1 x VGA

Operating System and Hypervisors

● Canonical Ubuntu Server LTS
● Citrix Hypervisor
● Windows Server with Hyper-V
● Red Hat Enterprise Linux
● SUSE Linux Enterprise Server
● VMware ESXi

Embedded Management

● iDRAC9
● iDRAC Direct
● iDRAC RESTful with Redfish
● iDRAC Service Manual
● Quick Sync 2 wireless module

Security
