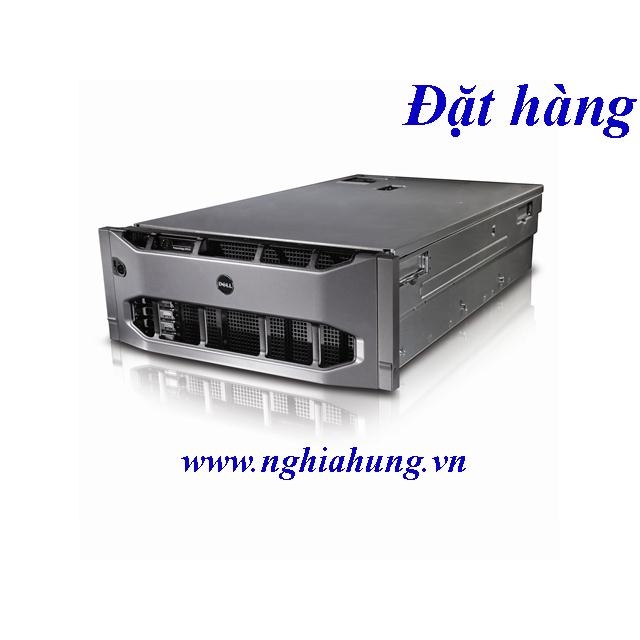

Server Dell PowerEdge R910 CPU 4x X7560/ Ram 64GB |
CPU: 4x 8 Core X7560 (2.26GHz, 24M Cache)
RAM: 64GB DDR3-10600R/1333Mhz ECC
HDD: 4x 600GB SAS 2.5" 10k
DVD: Option (Chưa kèm)
RAID: Dell Perc H700 (Raid 0,1,5,6,10)
NIC: Broadcom® 5720 Quad-port 1GbE Base
Power Supply: 4x 1100Watts Hot-plug
Rail Kit: Option (Chưa kèm).
Hàng nhập trực tiếp từ Mỹ.
" Hãy liên hệ với chúng tôi để có giá tốt nhất " |
|
Form factor |
4U rack |
|
Processors Server Dell R910 CPU 4x X7560 |
· Up to four, eight-core Intel® Xeon® processors 7500 series
Up to four, ten-core Intel® Xeon® processors E7-2800, E7-4800 and E7-8800 product family |
|
Processor sockets |
4 |
|
Memory Server Dell R910 CPU 4x X7560 |
· Up to 2TB (64 DIMM slots) 2GB/4GB/8GB/16GB/32GB DDR3 up to 1333MT/s |
|
I/O slots |
· Up to 10 PCIe G2 slots + 1 storage slot:
Standard: 7 PCIe Gen2 slots:
Two x4 slots
Four x8 slots
One x16 slot
Optional: 10 PCIe Gen2 slots:
Six x4 slots
Four x8 slots
One storage x8 slot |
|
RAID controller Server Dell R910 CPU 4x X7560 |
PERC H200
PERC H700 (6Gb/s) with 512MB battery-backed cache; 512MB, 1GB Non-Volatile battery-backed cache
External Controllers:
PERC H800 (6Gb/s) with 512MB of battery-backed cache; 512MB, 1GB Non-Volatile battery-backed cache
External HBAs (non-RAID):
6Gbps SAS HBA
SAS 5/E HBA
LSI2032 PCIe SCSI HBA |
|
Drive bays |
Up to sixteen 2.5” SATA SSD, SAS, nearline SAS, or SATA drives |
|
Maximum internal storage1 |
Up to 16TB |
|
Hard drives Server Dell R910 CPU 4x X7560 |
2.5" SATA SSD, SAS (10K, 15K), nearline SAS (7.2K), SATA (7.2K) |
|
Embedded NIC |
· Embedded NICs:
1GbE or 10Gb embedded NIC options with iSCSI offload
Broadcom® 5709c 4-port (4 x 1GbE) Embedded NIC or
Broadcom 57711 4-port (2 x 10GbE + 2 x 1GbE) Embedded NIC + Broadcom 5709c
Optional NICs:
Broadcom 57710 Single Port 10GbE NIC, Copper CAT6 PCIe-8
Intel DA 10GbE NIC, Dual Port, Optical, PCIe-8
Intel 10GbE Single Port 10GbE NIC, Copper, PCIe-8
Broadcom NetXtreme® II 5709 Gigabit NIC with TOE & iSOE, Quad Port, Copper, PCIe-4, (low profile option)
Broadcom 5709 Dual Port 1GbE NIC with TOE PCIe-4, (low profile option)
Broadcom 5709 Dual Port 1GbE NIC with TOE iSCSI, PCIe-4, (low profile option)
Broadcom NetXtreme® II 57711 10GbE NIC with TOE & iSOE, Dual Port, SFP+, PCIe-8
Intel Gigabit ET NIC, Dual Port, Copper, PCIe-4, (low profile option)
Intel Gigabit ET NIC, Quad Port, Copper, PCIe-4, (low profile option)
Brocade® CNA Dual Port adapter
Emulex® CNA iSCSI HBA stand up adapter OCE10102-IX-D
Emulex CNA iSCSI HBA stand up adapter OCE10102-FX-D
Brocade CNA BR1020
QLogic QLE2660 FC16 Single Port, PCIe 3.0 x4
QLogic QLE2662 FC16 Dual Port, PCIe 3.0 x4 |
|
Power supply Server Dell R910 CPU 4x X7560 |
· Hot-plug hard drives, Hot-plug redundant power, Hot plug redundant fans, ECC memory, Internal dual SD Module, redundant cooling |
|
Remote management |
· Dell™ OpenManage™
BMC, IPMI 2.0 compliant, iDRAC6 Express
Unified Server Configurator
Lifecycle controller enabled via optional: iDRAC6 Express, iDRAC6 Enterprise and vFlash
Microsoft® System Center Essential (SCE) 2010 v2 |
|
Rack support |
· ReadyRails II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm
ReadyRails static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded and 2-post (Telco) racks |
|
Operating systems Server R910 CPU 4x X7560 |
· Microsoft® Windows Server® 2012
Microsoft Windows Server 2008 SP2, x86/x64 (x64 includes Hyper-V®)
Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V v2)
Microsoft Windows® HPC Server 2008 R2
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux®
Virtualization options:
Citrix® XenServer®
Microsoft Hyper-V through Microsoft Windows Server 2008
VMware® vSphere® ESX™ and ESXi™
Red Hat Enterprise Virtualization® |
