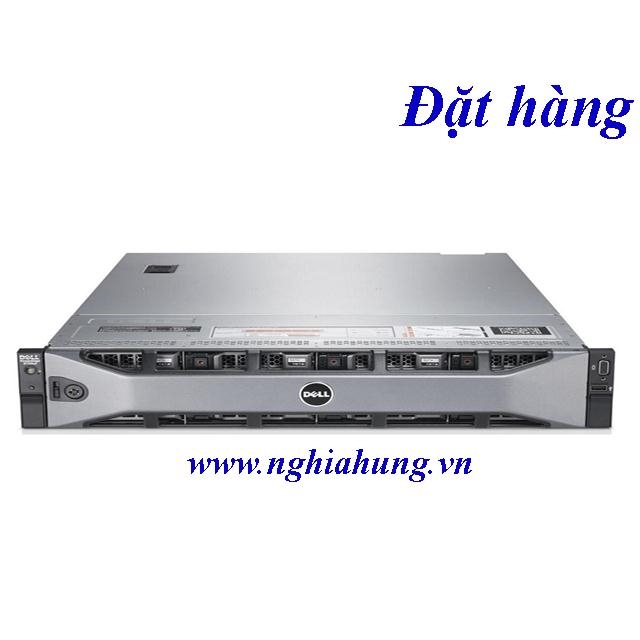

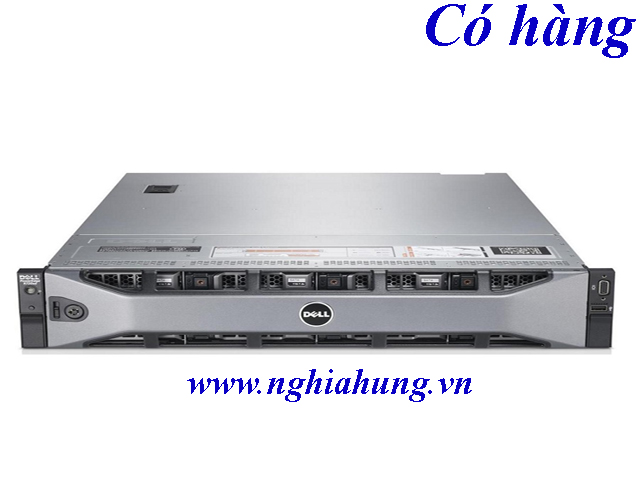

Máy Chủ Dell PowerEdge R820 - CPU 4x E5-4620 / Ram 64GB / DVD / Raid H710 / 2x PS

Máy Chủ Dell PowerEdge R820 – CPU E5-4620

CPU: 4x 8 Core E5-4620 (2.2Ghz, 16M Cache)
RAM: 64GB DDR3 RDIMM ECC
HDD: Option HDD SAS/SATA
DVD: DVD ROM
RAID: PERC H710 RAID(0,1,5,10..)
NIC: 2x RJ45 1G + 2x SFP 10G (Chưa kèm Modul)
Power Supply: 2x PS (2/2)
Rail kit: Option (Chưa kèm).
" Hãy liên hệ với chúng tôi để có giá tốt nhất "

Form factor

2U rack

Processors Server Dell R820 E5-4620

Intel  Xeon processor E5-4600 product family

Processor sockets

4

Memory Server Dell R820 E5-4620

• Up to 3TB (48 DIMM slots) 4GB/8GB/16GB/32GB/64GB DDR3 up to 1866MT/s

PCIe slots

• 7 PCIe slots:
  Two x16 half-length, full-height
  One x8 half-length, full-height
  Three x8 half-length, half-height
  One x8 half-length, full-height for the RAID controller

RAID controller Server Dell R820 E5-4620

• Internal controllers:
  PERC H310
  PERC H710
  PERC H710P
  External HBAs (RAID):
  PERC H810
  External HBAs (non-RAID):
  6Gbps SAS HBA

Hard drives (hot-plug) Dell R820 E5-4620

Drive Bays
Up to sixteen 2.5” hot-plug SAS, SATA, or SSD

Hard drives:
Hot-plug hard drive options:
2.5” PCIe SSD, SAS SSD, SATA SSD, SAS (15K, 10K), nearline SAS (7.2K), SATA (7.2K), SAS 512e (15K)
Self-Encrypting drives available

Feature

Specification

Network Controller Dell R820 E5-4620

• Broadcom® 5720 quad-port 1GbE Base-T (no TOE or iSCSI offload)
  Intel I350 quad-port 1GbE Base-T (no TOE or iSCSI offload)
  Intel X540 dual-port 10GbE Base-T with 2 x 1GbE (FCoE capability enabled on the 10GbE ports)
  Broadcom 57800S dual-port 10GbE Base-T with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports)
  Broadcom 57800S dual-port 10GbE SFP+ with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports)
  Broadcom 57840S quad-port 10GbE SFP+ Rack NDC (NPAR1.0, SRIOV, DCB, iSCSI and FCoE offloads and CEM)

Power supply Server Dell R820 E5-4620

• Titanium efficiency, hot-plug redundant 750W power supply
  Platinum efficiency, hot-plug redundant 750W or 1100W power supplies
  Auto-ranging power supplies

Availability

• High-efficiency, hot-plug, redundant power supplies; hot-plug drive bays; TPM; dual internal SD support; hot-plug
  redundant fans; optional bezel; luggage-tag; ECC memory, interactive LCD screen; extended thermal support;
  ENERGY STAR® compliant, extended power range; Switch Agnostic Partitioning (SWAP)

Management

Remote management:
iDRAC7 Express (default) or iDRAC7 Enterprise (upgrade option), both with Lifecycle Controller
8GB or 16GB vFlash media (upgrade options)

Operating systems Server

• Microsoft® Windows Server® 2012
  Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V®)
  Novell® SUSE® Linux Enterprise Server
  Red Hat® Enterprise Linux®
  Virtualization options:
  Citrix® XenServer®
  VMware® vSphere® ESXi ™
  Red Hat Enterprise Virtualization®
