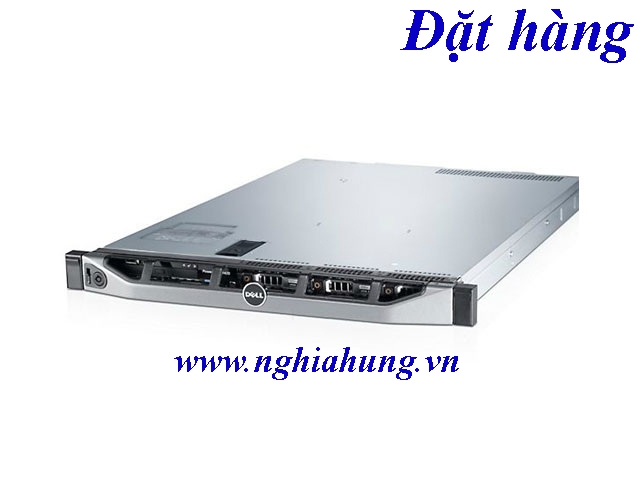

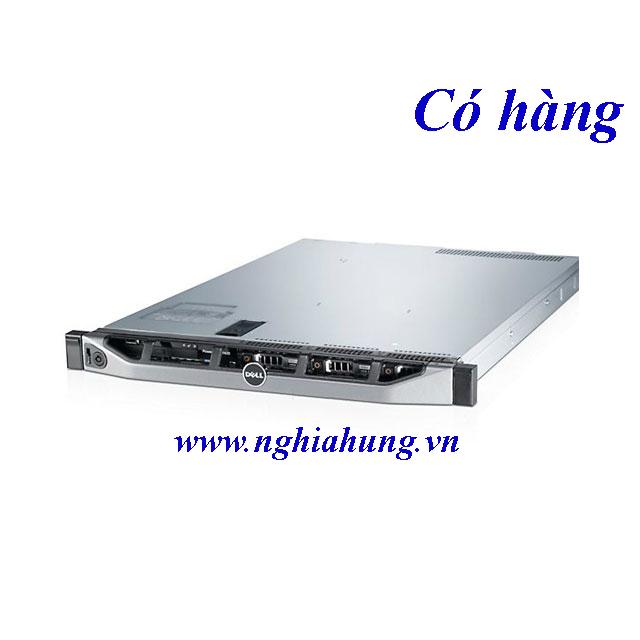

Máy Chủ Dell PowerEdge R630 - CPU E5-2630L v3
Máy Chủ Dell R630, bán Máy Chủ Dell R630, phân phối Máy Chủ Dell R630, Bán Server Dell R630, phân phối Server Dell R630, Máy Chủ Dell R630 giá rẻ, phân phối chính thức máy chủ Dell R630 |
CPU: 1x 8 Core E5-2630L v3 (1.8GHz, 20M Cache)
RAM: 16GB RDIMM, DDR4 ECC
HDD: Option HDD SAS/SATA 2.5"
DVD: Option (Chưa kèm)
RAID: PERC H330 Raid (0,1,5,10..)
NIC: 2x 10G SFP (Chưa kèm modul) + 2x 1G RJ45
Power Supply: 2x PS (2/2)
Rail kit: Option (Chưa kèm)
Hàng nhập khẩu trực tiếp từ Mỹ.
" Hãy liên hệ với chúng tôi để có giá tốt nhất " |
|
Feature |
Server Dell PowerEdge R630 technical specification |
|
Form factor |
1U rack |
|
Processors Server Dell R630 E5-2630L v3 |
Intel® Xeon® processor E5-2600v3 product family |
|
Processor sockets |
2 |
|
Internal interconnect |
2 x Intel QuickPath Interconnect (QPI) links: 6.4 GT/s, 8.0 GT/s, 9.60GT/s |
|
Memory Server Dell R630 E5-2630L v3 |
24 DIMM slots, DDR4 memory
Architecture: Up to 2133MT/s DDR4 DIMMs
Memory Type: RDIMM, LRDIMM
Memory Module Sockets: 24
Minimum RAM: 4GB (one module)
Maximum RAM: Up to 768GB (24 DIMM slots): 4GB/8GB/16GB/32GB |
|
I/O slots |
2 CPUs, 3 slots
Slot 1: Half length, half height - PCIe 3.0 x16 (x16 connector)
Slot 2: Half length, half height - PCIe 3.0 x8 (x16 connector)
Slot 3: Half length, half height - PCIe 3.0 x16 (x16 connector)
2 CPUs, 2 slots
Slot 1: Half length, half height - PCIe 3.0 x16 (x16 connector)
Slot 2: 3/4 length, full height - PCIe 3.0 x16 (x16 connector)
1 CPU, 2 slots
Slot 1: Half length, half height - PCIe 3.0 x8 (x16 connector)
Slot 2: 3/4 length, full height - PCIe 3.0 x16 (x16 connector |
|
RAID controller Server Dell R630 E5-2630L v3 |
Internal controllers:
PERC H330
PERC H730
PERC H730P
External HBAs (RAID):
PERC H830
External HBAs (non-RAID):
12Gbps SAS HBA |
|
Drive bays |
Internal hard drive bay and hot-plug backplane:
Up to 24 x 1.8” SATA SSD
Up to 10 x 2.5” HDD: SAS, SATA, nearline SAS SSD: SAS, SATA, Up to 4 NVMe PCIe
Up to 8 x 2.5” HDD: SAS, SATA, nearline SAS SSD: SAS, SATA |
|
Maximum internal storage Server Dell R630 E5-2630L v3 |
Up to 14TB |
|
Embedded NIC |
Broadcom® 5719 quad-port 1Gb NIC
Broadcom 5720 dual-port 1Gb NIC
Broadcom 57810 dual-port 10Gb DA/SFP+ CNA
Broadcom 57810 dual-port 10Gb Base-T network adapter
Intel® Ethernet I350 dual-port 1Gb server adapter
Intel Ethernet I350 quad-port 1Gb server adapter
Intel Ethernet X540 dual-port 10GBASE-T server adapter
Mellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ server network adapter
Mellanox ConnectX-3 dual-port 40Gb Direct Attach/QSFP server network adapter
Emulex® LPE 12000, single-port 8Gb Fibre Channel HBA
Emulex LPE 12002, dual-port 8Gb Fibre Channel HBA
Emulex LPe16000B, single-port 16Gb Fibre Channel HBA
Emulex LPe16002B, dual-port 16Gb Fibre Channel HBA
Emulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNA
QLogic® 2560, single-port 8Gb Optical Fibre Channel HBA
QLogic 2562, dual-port 8Gb Optical Fibre Channel HBA
Qlogic 2660, single-port 16GB, Fibre Channel HBA, full height
Qlogic 2662, dual-port 16GB, Fibre Channel HBA, full height |
|
Power supply Server Dell R630 E5-2630L v3 |
Platinum efficiency 495W, 750W or Platinum+ efficiency 1100W power suppliesAuto-ranging power supplies |
|
Availability |
ECC memory
Hot-plug hard drives
Hot-plug redundant cooling
Hot-plug redundant power
Internal Dual SD Module
Single Device Data Correction (SDDC)
Spare Rank
Support for high availability clustering and virtualization
Proactive systems management alerts
iDRAC8 with Lifecycle Controller |
|
Systems management |
Systems management:
IPMI 2.0 compliant
Dell OpenManage Essentials
Dell OpenManage Mobile
Dell OpenManage Power Center
Dell OpenManage Integrations:
Dell OpenManage Integration Suite for Microsoft System Center
Dell OpenManage Integration for VMware® vCenter
Dell OpenManage Connections:
HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management
Dell OpenManage for Oracle Database Manager
Remote management:
iDRAC8 with Lifecycle Controller
iDRAC8 Express (default)
iDRAC8 Enterprise (upgrade)
8GB vFlash media (upgrade)16GB vFlash media (upgrade)
iDRAC Quick Sync |
