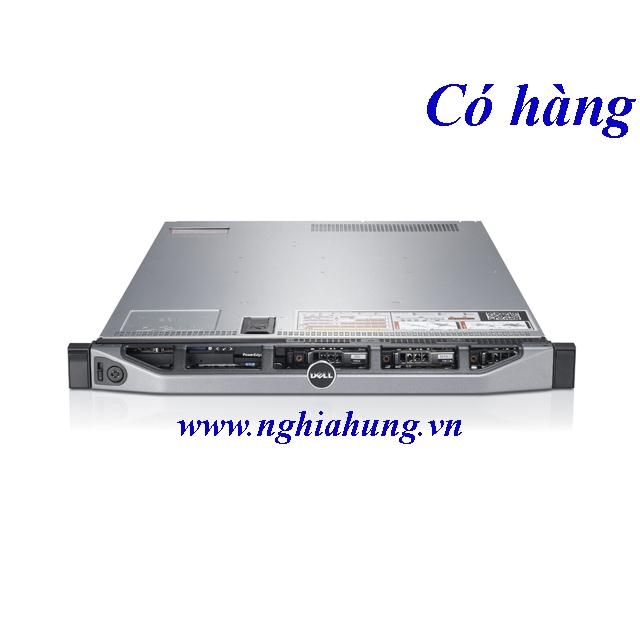

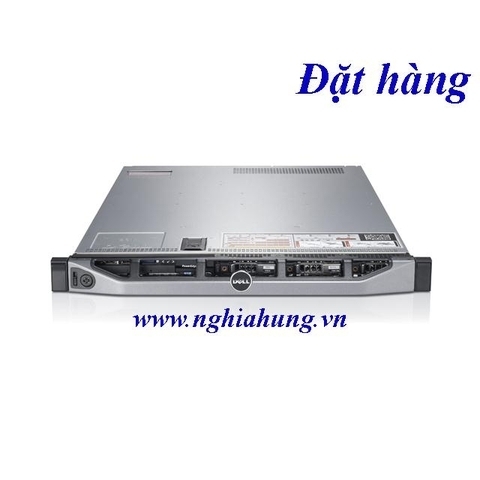

Server Dell PowerEdge R620 CPU E5-2620 |
CPU: 2x 6 Core E5-2620 (2.0Ghz, 15M Cache)
RAM: 16GB DDR3 ECC
HDD: Option HDD SAS/SATA 2.5"
DVD: Option (Chưa kèm)
RAID: Dell Perc H710 (Raid 0,1,5,10...)
NIC: 2x RJ45 1G + 2x SFP 10G (Chưa kèm Modul)
Power Supply: 2x PS Hot-wap (2/2)
Rail Kit: Option (Chưa kèm)
Hàng nhập trực tiếp từ Mỹ.
" Hãy liên hệ với chúng tôi để có giá tốt nhất " |
|
Form factor |
1U rack |
|
Processors Server Dell R620 CPU 2x E5-2620 |
Intel® Xeon® processor E5-2600/2600v2product family |
|
Processor sockets |
2 |
|
Internal interconnect |
2 x Intel QuickPath Interconnect (QPI) links: 6.4 GT/s, 7.2 GT/s, 8.0 GT/s |
|
Cache |
2.5MB per core; core options: 2, 4, 6, 8,10 |
|
Chipset |
Intel C600 |
|
Memory Server Dell R620 CPU 2x E5-2620 |
Up to 768GB (24 DIMM slots): 2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MT/s |
|
I/O slots |
3 PCIe slots:
Two x16 slots with x16 bandwidth, half-height, half-length
One x16 slot with x8 bandwidth, half-height, half-length
(10-drive-bay configuration is available only with the 3 PCIe slot option)
or
2 PCIe slots:
One x16 slot with x16 bandwidth, full-height, 3/4 length
One x16 slot with x16 bandwidth (or x8 with one processor only), half-height, half-length |
|
RAID controller Server Dell R620 CPU 2x E5-2620 |
Internal controllers:
PERC S110 (SW RAID)
PERC H310
PERC H710
PERC H710P
External HBAs (RAID):
PERC H810
External HBAs (non-RAID):
6Gbps SAS HBA |
|
Drive bays |
Up to ten 2.5” hot-plug SAS, SATA, or SSD or up to four hot-plug 2.5” SAS, SATA, or SSD + two PCIe SSD |
|
Maximum internal storage1 |
Up to 10TB |
|
Hard drives Server Dell R620 CPU 2x E5-2620 |
Hot-plug hard driveSSD,options:SSD, SAS (15K, 10K), nearline SAS (7.2K), SATA (7.2K) Self-encrypting drives available |
|
Embedded NIC |
Broadcom® Quad Port 1GbE BASE-T (no TOE or iSCSI offload)
Intel Quad Port 1GbE BASE-T (no TOE or iSCSI offload)
Intel Dual Port 10GbE BASE-T + two 1GbE (FCoE capability enabled on 10GbE ports)
Broadcom Dual Port 10GbE SFP+ with two 1GbE (TOE and iSCSI offload available on 10GbE ports) |
|
Power supply Server Dell R620 CPU 2x E5-2620 |
Platinum efficiency 495W, 750W or Platinum+ efficiency 1100W power suppliesAuto-ranging power supplies |
|
Availability |
High-efficiency, hot-plug, redundant power supplies, memory, interactivedrives, screen, extended support, hot-plug, ENERGY STAR® compliant, switch independent partitioning |
|
Remote management |
iDRAC7 ExpressLifecycle Controller Enterprise (upgrade option), 8GB vFlash media (upgrade option), 16GB vFlash media (upgrade option) |
|
Systems management Server Dell R620 CPU 2x E5-2620 |
IPMI 2.0 compliant
Dell OpenManage™ Essentials and Dell Management Console
Dell OpenManage Power Center
Dell OpenManage Connections:
OpenManage Integration Suite for Microsoft® System Center
Dell plug-in for VMware® vCenter™
HP Operations Manager, IBM Tivoli® Netcool® , and CA Network and Systems Management |
|
Rack support |
ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm
ReadyRails static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded and 2-post (Telco) racks |
|
Operating systems Server Dell R620 CPU 2x E5-2620 |
Microsoft® Windows® Server® 2008 R2 SP1, x64 (includes Hyper-V™ v2)
Microsoft® Windows® HPC Server 2008
Microsoft® Windows® Small Business Server 2011
SUSE® Linux® Enterprise Server
Red Hat® Enterprise Linux
Optional embedded hypervisors:
Citrix® XenServer™
VMware vSphere™ |
