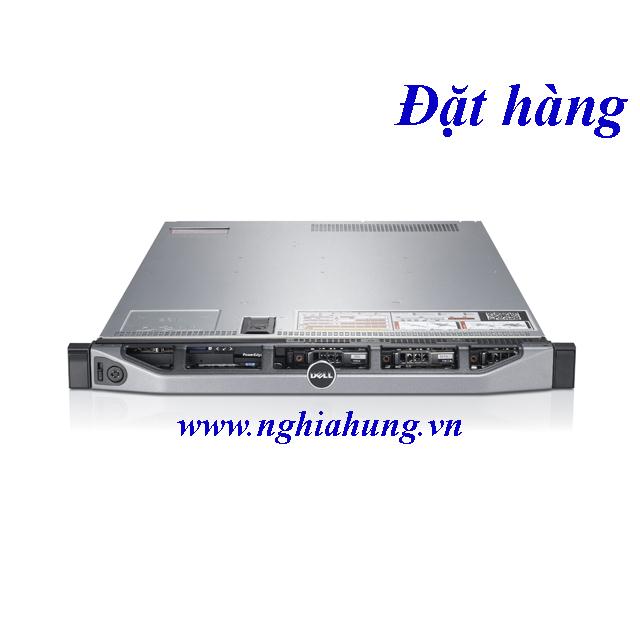

Máy Chủ Dell PowerEdge R610 CPU X5660
|
CPU: 2x 6 Core X5660 (2.8Ghz, 12MB Cache)
RAM: 16GB DDR3 ECC
HDD: Option HDD SAS/SATA 2.5"
DVD: Option (Chưa kèm)
RAID: Dell Perc 6i Support Raid (0,1,5,10)
NIC: Broadcom Quad-port Ethernet
Power Supply: 2x PS
Rail kit: Option (Chưa kèm).
Hàng nhập trực tiếp từ Mỹ.
" Hãy liên hệ với chúng tôi để có giá tốt nhất "
|
|
Processors Server Dell R610 CPU 2x X5660
|
Intel® Xeon® processor 5500 and 5600 series
Six-Core Intel® Xeon®
Quad-Core Intel® Xeon®
|
|
Chipset
|
IntelTM 5500 (Tylersberg)
|
|
Memory Server Dell R610 CPU 2x X5660
|
Up to 192GB (12 DIMM slots/6 per-processor): 1GB/2GB/4GB/8GB/16GB DDR3 800MHz, 1066MHz or 1333MHz
Embedded Hypervisor (Optional)
Citrix® XenServer®
Microsoft® Windows Server® 2008, with Hyper-VTM
VMware® ESXiv 3.5
|
|
Operating Systems Server Dell R610 CPU 2x X5660
|
Microsoft® Windows® Small Business Server 2008
Microsoft® Windows® Essential Business Server 2008
Microsoft Windows® Server 2008 SP2, x86/x64 (x64 includes Hyper-VTM )
Microsoft Windows® Server 2008 R2, x64 (includes Hyper-VTM v2)
Microsoft® Windows® HPC Server 2008
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux
Sun® SolarisTM
|
|
Storage
|
SAS, Near-line SAS, SSD and SATA:
2.5" SAS (15K RPM): 73GB, 146GB
2.5" SAS (10K): 146GB, 300GB, 600GB
2.5" Enterprise SSD: 50GB, 100GB
2.5" SATA (7.2K): 80GB, 500GB
2.5" Near-Line SAS (7.2K): 500GB
2.5" Near-Line SAS (7.2K): 1TB
|
|
Maximum internal storage
|
6TB with six 1TB SAS drives
|
|
Network Interface Cards
|
Two dual port embedded Broadcom® NetXtreme IITM 5709c Gigabit Ethernet NIC with failover and load balancing.
Optional 1GBe and 10GBe add-in NICs
|
|
Drive Bays
|
Internal hard drive bay and hot-plug backplane:
Up to six 2.5” SAS or SSD drives
Peripheral bay options:
Slim optical drive bay with choice of DVD-ROM, Combo CD-RW/DVD-ROM, or DVD + RW
|
|
Slots
|
Two x8 Gen2 slots
|
|
RAID Controllers (Optional) Server Dell R610 CPU 2x X5660
|
Internal:
PERC H200 (6Gb/s)
PERC H700 (6Gb/s) with 512MB Non-Volatile cache
PERC H700 (6Gb/s) with 512MB battery-backed cache
SAS 6/iR
PERC 6/i with 256MB battery-backed cache
External:
PERC H800 (6Gb/s) with 512MB Non-Volatile cache
PERC H800 (6Gb/s) with 512MB of battery-backed cache
PERC 6/E with 256MB or 512MB of battery-backed cache
External HBAs (non-RAID):
6Gbps SAS HBA
SAS 5/E HBA
LSI2032 PCIe SCSI HBA
|
|
Communications Optional add-in NICs Server Dell R610 CPU 2x X5660
|
Dual Port 10GB Enhanced Intel Ethernet Server Adapter X520-DA2 (FcoE Ready for Future Enablement)
Intel PRO/1000 PT Dual Port Server Adapter, Gigabit, Copper, PCI-E x4
Intel PRO/1000 VT Quad Port Server Adapter, Gigabit, Copper, PCI-E x4
Intel 10GBase-T Copper Single Port NIC, PCI-E x8
Intel Single Port Server Adapter, 10Gigabit, SR Optical, PCI-E x8
Broadcom® BMC57710 10Base-T Cooper Single Port NIC, PCI-E x8
Broadcom® BMC5709C IPV6 Gigabit Copper Dual Port NIC with TOE and iSCSI Offload, PCI-E x4
Broadcom® BMC5709C IPV6 Gigabit Copper Dual Port NIC with TOE, PCI-E x4
Broadcom® NetXtreme® II 57711 Dual Port Direct Attach 10Gb Ethernet PCI-Express Network Interface Card with TOE and iSCSI Offload
Intel® Gigabit ET Dual Port Server Adapter
Intel® Gigabit ET Quad Port Server Adapter
Broadcom 10GbE NIC, Broadcom Dual Port 10GbE SFP+
Optional add in HBAs:
Qlogic® QLE 2462 FC4 Dual Port 4 Gbps Fiber Channel HBA
Qlogic® QLE 220 FC4 Single Port 4 Gbps Fiber Channel HBA
Qlogic® QLE 2460 FC4 Single Port 4 Gbps Fiber Channel HBA
Qlogic® QLE2562 FC8 Dual-channel HBA, PCI-E Gen 2 x4
Qlogic® QLE2560 FC8 Single-channel HBA, PCI-E Gen 2 x4
Emulex® LPe-1150 FC4 Single Port 4 Gbps Fiber Channel HBA, PCI-E x4
Emulex® LPe-11002 FC4 Dual Port 4 Gbps Fiber Channel HBA, PCI-E x4
Emulex® LPe-12000, FC8 Single Port 4 Gbps Fiber Channel HBA, PCI-E Gen 2 x4
Emulex® LPe-12002, FC8 Dual Port 4 Gbps Fiber Channel HBA, PCI-E Gen 2 x4
|
|
Power Supplies Server Dell R610 CPU 2x X5660
|
Two hot plug high efficient 502w PSU (Energy Smart) or
Two hot-plug 717W PSUs (High Output)
Uninterruptible Power supplies
1000W-5600W
2700W-5600W High Efficiency Online
Extended Battery Module (EBM)
Network Management Card
|
|
Availability
|
Hot-plug hard drives, hot-plug redundant power, redundant cooling, ECC memory, Single Device Data Correction (SDDC), supports memory demand, patrol scrubbing and high availability failover cluster
|
|
Graphics
|
Integrated Matrox G200, 8 MB shared video memory
|
|
Chassis
|
R610 Rack:
Height: 4.26cm (1.68”)
Width: 48.24cm (18.99”) (includes rack latches)
Depth: 77.2cm (30.39”) (includes PSU handles and bezel)
Weight (maximum config): 17.69Kgs (39lbs)
|
|
Management
|
Dell OpenManage featuring Dell Management Console
Lifecycle Controller
iDRAC6 Enterprise (Optional)
VFlash (Optional)
Fans
Standard redundant cooling
Acoustics
Typically configured 2.5” chassis in 23 ± 2 C ambient
Idle: LwA-UL = 5.3 bels, LpAm = 35 dBA
|
|
Rack Support Server Dell R610 CPU 2x X5660
|
ReadyRailsTM sliding rails for 4-post Racks:
Support tool-less installation in 19” EIA-310-E compliant square or unthreaded round hole 4-post racks including all Dell 42xx & 24xx racks
NOTE: Threaded 4-post racks require the static ReadyRailsTM kit or 3rd party conversion kits available through Dell Software & Peripherals
Support full extension of the system out of the rack to allow serviceability of key internal components
Support optional cable management arm (CMA) except on Dell 4200 & 2400 racks and 3rd party racks that are less than 1m in depth
Rail depth without the CMA: 798 mm (with outer CMA brackets attached), 768 mm (with outer CMA brackets removed)
Rail depth with the CMA: 887 mm
Square-hole rack adjustment range: 692-756 mm
Round-hole rack adjustment range: 678-749 mm
ReadyRailsTM static rails for 4-post & 2-post Racks:
Support tool-less installation in 19” EIA-310-E compliant square or unthreaded round hole 4-post racks including all Dell 42xx & 24xx racks
Support tooled installation in 19” EIA-310-E compliant threaded hole 4-post and 2-post racks
Rail depth: 608 mm
Square-hole rack adjustment range: 588-828 mm
Round-hole rack adjustment range: 574-821 mm
Threaded-hole rack adjustment range: 592-846 mm
Regulatory and Environmental Compliance
Regulatory Model: E01S
Regulatory Type: E01S001
Product Safety, EMC and Environmental Datasheets
Dell Regulatory Compliance Home Page
Dell and the Environment
PowerEdge R610 Spec Sheet
|
