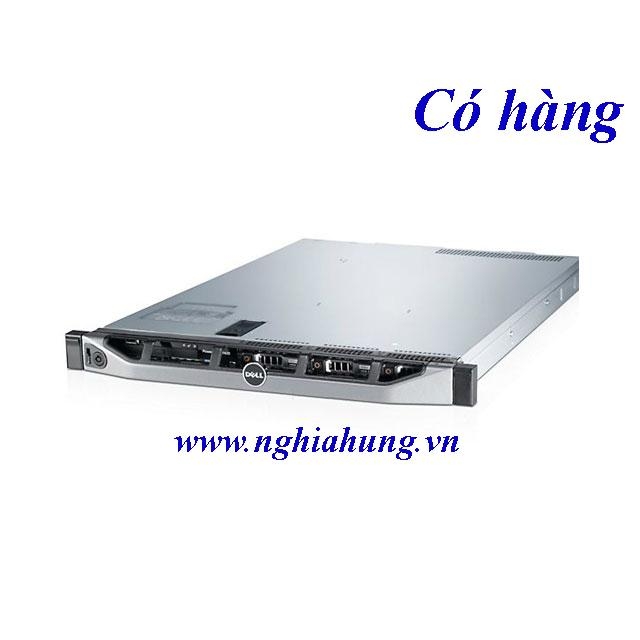

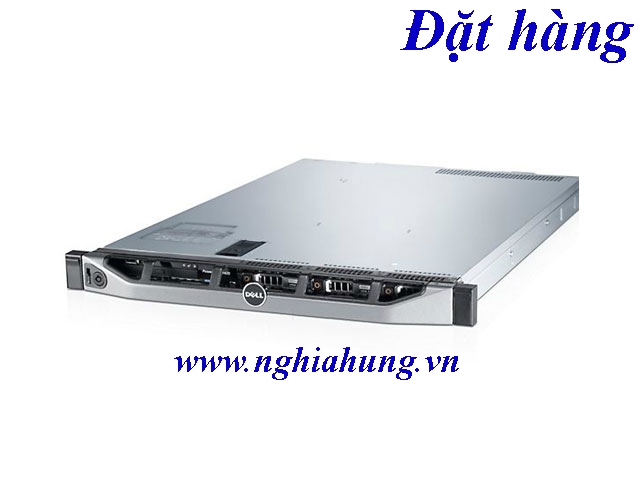

Máy Chủ Dell PowerEdge R420
|
CPU: 2x 8 Core E5-2450 (2.1GHz, 20M Cache)
RAM: 32GB DDR3-10600/1333MHz ECC
HDD: Option HDD SATA
DVD: DVD ROM
RAID: Dell Perc S110 Raid (0,1,5,10)
NIC: Broadcom® 5720 Dual Port 1Gb
Power Supply: 1x 350Watts (1/1)
Rail kit: Option (Chưa kèm)
Hàng nhập trực tiếp từ Mỹ.
"Hãy liên hệ với chúng tôi để có giá tốt nhất" |
|
Feature |
Server Dell PowerEdge R420 technical specification |
|
Form factor |
1U rack |
|
Processor Server Dell R420 CPU E5-2450 |
Intel® Xeon® processor E5-2400 product family |
|
Processor sockets |
2 |
|
Internal interconnect |
Intel QuickPath Interconnect (QPI) link: 6.4GT/s; 7.2GT/s; 8.0 GT/s |
|
Cache |
2.5MB per core; core options: 4, 6, 8 |
|
Chipset |
Intel C600 series |
|
Memory Server Dell R420 CPU E5-2450 |
Up to 384GB (12 DIMM slots): 2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MHz |
|
I/O slots |
2 PCIe slots:
With two processors:
One x16 PCIe slot with x16 bandwidth, half-length, falf-height
One x16 PCIe slot with x16 bandwidth, half-length, full-height
With one processor:
One x8 PCIe slot with x4 bandwidth, half-length, half-height
One x16 PCIe slot with x16 bandwidth, half-length, full-height |
|
Raid controller Dell Server R420 CPU E5-2450 |
External HBAs (RAID):
PERC S110 (SW RAID) PERC H310
PERC H710 PERC H810
External HBAs (non RAID): 6Gbps SAS HBA
PERC H710P |
|
Drive bays |
Up to eight 2.5” hot-plug SSD, SAS, or SATA or up to four 3.5” hot-plug SAS, SATA, or SSD |
|
Maximum internal storage |
Up to (16TB 3.5"), (9.6TB 2.5") |
|
HDD DELL PowerEdge R420 E5-2450 |
Hot-plug hard drive options:
Cabled hard drive options:
2.5” SATA, nearline SAS, SAS (15K, 10K), SAS SSD, SATA SSD
3.5” SATA, nearline SAS, SAS (15K)
3.5” SATA, nearline SAS, SAS (15K)
Self-encrypting drives available |
|
Embedded NIC |
Broadcom® 5720 Dual Port 1Gb LOM |
|
I/O adapter options |
1Gb Ethernet:
Broadcom 5720 Dual Port 1Gb NIC
Broadcom 5719 Quad Port 1Gb NIC
Intel I350 Dual Port 1Gb stand-up adapter
Intel I350 Quad Port 1Gb stand-up adapter
10Gb Ethernet:
Intel X520 Dual Port 10Gb DA/SFP+ server adapter
Intel X540 Dual Port 10Gb Base-T adapter
10Gb Converged Ethernet:
Brocade® BR1020 Dual Port 10Gb CAN
Qlogic® QLE8262 Dual Port 10Gb DA/SFP+
Broadcom 57810S Dual Port 10Gb Base-T CAN
Broadcom 57810S Dual Port 10Gb DA/SFP+ CAN
FC8/FC4 HBA:
QLogic QLE2460 4Gb Single Port FC HBA
QLogic QLE2462 4Gb Dual Port FC HBA
QLogic QLE2560 8Gb Single Port FC HBA
OLogic QLE2562 8Gb Dual Port FC HBA
Emulex® LPe-12000-E 8Gb Single Port FC HBA
Emulex LPe-12002-E 8Gb Dual Port FC HBA
Brocade 815 8Gb Single Port FC HBA
Brocade 825 8Gb Dual Port FC HBA |
|
Power supply Server Dell R420 E5-2450 |
Platinum efficiency 550W and 350W (for one processor only) power supplies, Silver efficiency cabled 550W powersupply, auto-ranging power supplies |
|
Availability |
High-efficiency, hot-plug, redundant power supplies; hot-plug hard drives; TPM; dual internal SD support; fan faulttolerance; optional bezel; luggage tag; ECC memory, interactive LCD screen; ENERGY STAR® compliant |
|
Remote management |
Basic management (default), iDRAC7 with Lifecycle Controller, iDRAC7 Express (upgrade), iDRAC7 Enterprise (upgrade),8GB vFlash media (upgrade), 16GB vFlash media (upgrade) |
|
Systems management |
IPMI 2.0 compliant
Dell OpenManage™ Essentials and Dell Management Console
Dell OpenManage Power Center
Dell OpenManage Connections:
OpenManage Integration Suite for Microsoft® System Center
Dell plug-in for VMware® vCenter™
HP Operations Manager, IBM Tivoli® Netcool®, and CA Network and Systems Management |
|
Rack support |
ReadyRails™ II sliding rails for toolless mounting in 4-post racks with square or unthreaded round holes or tooled
Mounting in 4-post threaded hole racks, with support for optional toolless cable management arm
ReadyRails static rails for toolless mounting in 4-post racks with square or unthreaded round holes or tooled
Mounting in 4-post threaded and 2-post (Telco) racks |
|
Operating systems Server Dell R420 E5-2450 |
Microsoft Windows Server® 2008 R2 SP1, x64 (includes Hyper-V™ v2)
Microsoft Windows® Small Business Server 2011
SUSE® Linux® Enterprise Server
Red Hat® Enterprise Linux®
Optional embedded hypervisors:
Citrix® XenServer™
VMware vSphere™ |
