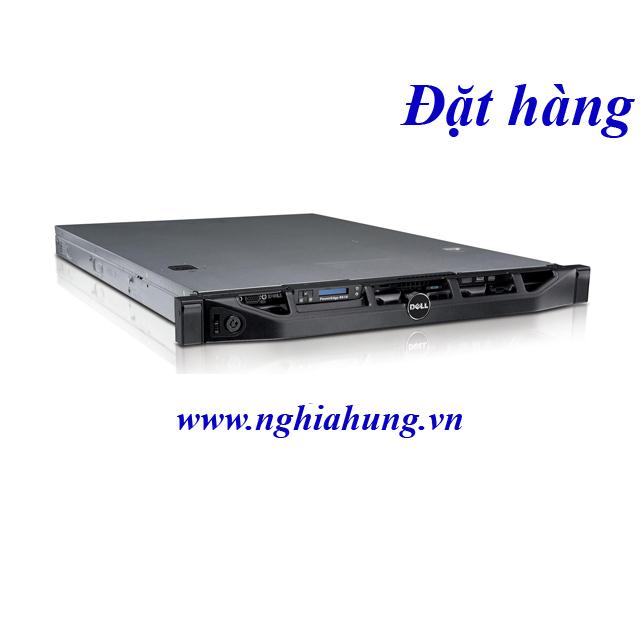

Máy Chủ Dell PowerEdge R410
|
CPU: 2x 4 Core E5640 (2.66Ghz, 12MB Cache)
RAM: 16GB DDR3-10600R/1333Mhz ECC
HDD: Option HDD SAS/SATA 3.5"
DVD: Option (Chưa kèm)
RAID: Dell Perc 6iR Support Raid (0,1)
NIC: Broadcom Dual-port Ethernet
Power Supply: 2x 500Watts (2/2)
Rail kit: Option (Chưa kèm)
Hàng nhập trực tiếp từ Mỹ.
" Hãy liên hệ với chúng tôi để có giá tốt nhất "
|
|
Processors Server Dell R410
|
Intel® Xeon® processor 5500
Six-Core Intel® Xeon®
Quad-Core Intel® Xeon®
|
|
Chipset
|
Intel® 5500 chipset
|
|
Memory Server (Bộ nhớ trong Máy Chủ) Dell R410
|
Up to 128GBs (8 DIMM slots) 1GB/2GBs/4GBs/8GBs/16GBs DDR3 800MHz, 1066MHz or 1333MHz.
Unbuffered w/ECC or Registered w/ECC at 1333/1066/800MHz
Options:
1GB UDIMM/RDIMM
2GBs UDIMM/RDIMM
4GBs RDIMM
8GBs RDIMM
16GBs Quad-Ranked 1066MHz DIMMs
|
|
Operating Systems Server Dell R410
|
Microsoft® Windows® Small Business Server 2008
Microsoft® Windows® Essential Business Server 2008
Microsoft® Windows® Server 2008 SP2, x86/x64 (x64 includes Hyper-VTM )
Microsoft® Windows® Server 2008 R2, x64 (includes Hyper-VTM v2)3
Microsoft® Windows® HPC Server 2008
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux
HPCC Software
Microsoft HPC Server 2008
Red Hat Enterprise Linux 5 for HPC
|
|
Storage Server (Bộ lưu trữ Máy Chủ) Dell R410
|
3.5" SATA(7.2K RPM) 160GBs, 250GBs, 500GBs, 750GBs, 1TB, 2TB
3.5" Near Line SAS(7.2K RPM) 500GBs, 750GBs, 1TB, 2TB
3.5" SAS(15K RPM) 146GBs, 300GBs, 450GBs
3.5" SAS (10K RPM): 600GBs
2.5" SAS (10K RPM): 73GBs, 146GBs, 300GBs
2.5" SATA SSD 25GBs, 50GBs, 100GBs
|
|
Maximum Internal Storage:
|
8TBs SATA
8TBs(4x2000GBs) SAS
|
|
Backup Devices
|
RD1000 (External)
DATA72 (External)
LTO2-L (External)
LTO3-060 (External)
LTO3FH (External)
LTO4-120 HH (External)
LTO4-120 FH (External)
PV114T (External, 2U)
|
|
Tape Automation
|
TL2000/TL4000
ML6000
PV124T
|
|
Backup and Recovery Software:
|
CommVault
Symantec Backup Exec including Backup Exec System Recovery
Vizioncore
|
|
Drive Bays
Hard drive base options:
|
4 x 3.5" Cabled HDD
Or
4 x 3.5" Hot-Swap HDD
Or
4 x 2.5" Hot-Swap HDD
2.5" 500GB1 SATA
Peripheral bay options:
One slim type optical drive bay with choice of DVD-ROM or DVD+/-RW
|
|
Slots
|
1 PCI slot
Slot 1: PCIe x16 (True x16, Gen2), half length
Slot 2: Propriety for SAS 6/iR Modular card only
|
|
Storage Controllers Server Dell R410 (optional) Internal:
|
PERC H200 (6Gb/s)
PERC H700 (6Gb/s) with 512MB battery-backed cache
SAS 6/iR
PERC 6/i with 256MB battery-backed cache
PERC S100 (software based)
PERC S300 (software based)
External:
PERC H800 (6Gb/s) with 512MB Non-Volatile cache
PERC H800 (6Gb/s) with 512MB of battery-backed cache
PERC 6/E with 256MB or 512MB of battery-backed cache
External HBAs (non-RAID):
6Gbps SAS HBA
SAS 5/E HBA
LSI2032 PCIe SCSI HBA |
|
Optional Communications
|
Intel PRO/1000PT - Single Port Intel x1 PCIe, copper GbE NIC
Intel 10G Base-T Single Port NIC4
BCM57710-10G base – T Single Port NIC
Intel PRO/1000PT – Dual Port
Dual- Port Broadcom 5709 PCIe copper, GbE NIC, TOE
Dual- Port Broadcom 5709 PCIe copper, GbE NIC, TOE/Isoe
Intel® PRO/1000VT Quad Port Intel® x4 PCIe copper, GbE NIC
Intel® Gigabit ET Dual Port Server Adapter
Intel® Gigabit ET Quad Port Server Adapter
Intel 10GbE NIC
Intel Single Port 1GbE NIC
Intel Dual Port 1GbE NIC
Intel Quad Port 1GbE NIC
Broadcom 10GbE NIC
Broadcom Dual Port 1GbE NIC
|
|
Power Server (Bộ nguồn Máy Chủ) Dell R410
|
Non-Redundant, 480W (80+ BRONZE)
Optional Redundant, 500W (80+ SILVER)
Auto Ranging (100V~240V)
Uninterruptible Power supplies
1000W-5600W
2700W-5600W High Efficiency Online
Extended Battery Module (EBM)
Network Management Card
Availability:
Quad-pack LED diagnostic / LCD with Hot-swap HDD chassis TCM
Embedded Network Controller:
1 Dual port Broadcom BCM 5716
Graphics:
Matrox G200eW w/ 8MB
Chassis:
43.0 x 434.0 x 627.1 (mm) (w/o ear, w/o bezel)
1.69 x 17.09 x 24.69 (in) |
|
Management
|
Dell OpenManage featuring Dell Management Console BMC, IPMI2.0 compliant
Optional: iDRAC6 Express, iDRAC6 Enterprise and Vflash
Regulatory and Environmental Compliance
Regulatory Model: E07S
Regulatory Type: E07S001
Product Safety, EMC and Environmental Datasheets
Dell Regulatory Compliance Home Page
|
