THÔNG TIN CHI TIẾT SẢN PHẨM
Processor
Intel® Xeon® 5500 series Dual and Quad Core 60W, 80W, and 95W TDP options
Operating System
Microsoft® SQL Server 2008 R2
Microsoft® Windows® Essential Business Server 2008
Microsoft Windows® Server 2008 SP2, x86/x64 (x64 includes Hyper-V™ )
Microsoft Windows® Server 2008 R2, x64 (includes Hyper-V™ v2)2
Microsoft® Windows® HPC Server 2008
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux
Sun® Solaris™
Chipset
Intel 5520
Memory
12 DIMM slots
1GB/2GB/4GB/8GB ECC DDR3
Support up to 192GB3 using 12 x 16GB DIMMs
Embedded Hypervisor (Optional)
Citrix® XenServer®
Microsoft® Windows Server® 2008, with Hyper-V™
VMware® vSphere™ 4.1 (including VMware ESX® 4.1 or VMware ESXi™ 4.1)
Storage
Internal Hot-Swappable Drives:
2.5" SAS (10K rpm): 36GB, 73GB , 146GB , 300GB , 600GB
2.5" SAS (15K rpm): 36GB, 73GB or 146GB
2.5” SATA (7.2k rpm): 80GB, 120GB, 160GB or 250GB
Solid State Drives (SSD): 25GB, 50GB, 100GB, 150GB
Maximum Internal Storage
Up to 600GB per blade via two x 2.5" 300GB4 hot-plug SAS hard drive
External Storage:
Dell/EqualLogic PS5000 Series
PowerVault™ NX1950 Unified Storage Solution
PowerVault MD3000i
Dell/EMC products:
Dell/EMC fibre channel and/or iSCSI external storage, including Dell/EMC CX300, CX3-10c , CX3-20, CX3-40, and CX3-80; CX4-120, CX4-240, CX4-480 and CX4-960
Drive Bays
Two 2.5” SAS/Solid State Hot-Swappable Drives
2.5" 500GB4 SATA
3.5" 2.0TB4 SATA
I/O Mezzaine Card Options
Fully populated mezz card slots and switch modules will yield 3 highly available, redundant I/O fabrics for each blade.
Available options:
1Gb & 10Gb Ethernet:
Dual-Port Broadcom Gb Ethernet w/ TOE (BCM-5709S)
Quad-Port Intel Gb Ethernet (82576)
Quad-Port Broadcom Gb Ethernet (BCM-5709S)
Dual-Port Broadcom 10Gb Ethernet (BCM-57711)
10Gb Enhanced Ethernet & Converged Network Adapters (CEE/DCB):
Dual-Port Qlogic® Converged Network Adapter (QME8142) - Supports CEE/DCB 10GbE + FCoE
Fibre Channel:
Dual-Port QLogic FC8 Fibre Channel Host Bus Adapter (HBA) (QME2572)
Dual-Port Emulex FC8 Fibre Channel Host Bus Adapter (HBA) (LPe1205-M)
Infiniband:
Dual-Port Mellanox ConnectX Quad Data Rate (QDR) InfiniBand
Dual-Port Mellanox ConnectX Dual Data Rate (DDR) InfiniBand
RAID Controllers
Internal:
PERC H200 Modular (6Gb/s)
PERC H700 Modular (6Gb/s) with 512MB battery-backed cache; 512MB, 1GB Non-Volatile battery-backed cache
SAS 6/iR Modular
CERC 6/i Modular
PERC 6/i Modular with 256MB battery-backed cache
Communications
Two embedded Broadcom® NetXtreme II™ 5709 Gigabit Ethernet NICs with failover and load balancing TOE (TCPIP Offload Engine) supported on Microsoft® Windows Server 2003, SP1 or higher with Scalable Networking Pack. iSCSI Offload supported on Microsoft Windows Server 2008, Microsoft Windows Server 2003 SP1 or higher, Red Hat® Linux® Enterprise 5, and SUSE LINUX Enterprise Server 10. Scalable Networking Pack for Microsoft Windows Server 2003 is not required.
Boot from SAN (iSCSI and FC) supported
Optional add-in NICs:
Dual Port 10GB Enhanced Intel Ethernet Server Adapter X520-DA2 (FcoE Ready for Future Enablement)
See I/O Mezzanine Card Options
Intel® Gigabit ET Dual Port Server Adapter
Intel® Gigabit ET Quad Port Server Adapter
Optional add in HBAs:
See I/O Mezzanine Card Options
Fully populated mezz card slots and switch modules will yield 3 highly available, redundant I/O fabrics for each blade.
Power
Supplied by Dell’s M1000e Blade Chassis
Video Card
Matrox G200
Chassis

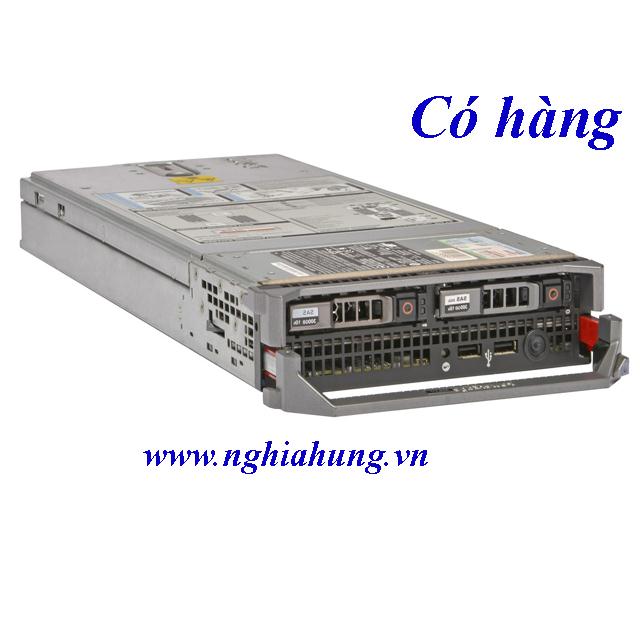

The PowerEdge M610 blade server fits in the M1000e blade enclosure. A total of 8 full-height or 16 half-height blades can fit into every M1000e enclosure. Full height and half height blades can be mixed in M1000e enclosures with no limitations.
M610 Dimensions and Weight (blade only):
Height: 18.9 cm (7.4 in)
Width: 5 cm (2 in)
Depth: 48.6 cm (19.2 in)
Weight (Maximum Configuration): 5.2-6.4 kg (11.5-14.0 lb)
Full height blade fits inside the M1000e Blade Enclosure
Maximum of 8 per blade chassis
Management
Dell OpenManage featuring Dell Management Console
Lifecycle Controller
iDRAC6 Enterprise
VFlash
Regulatory
Regulatory Model: HHB
Regulatory Type: HHB001
