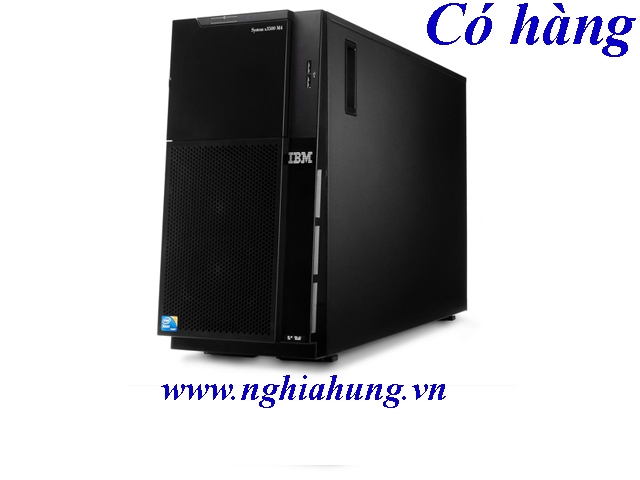

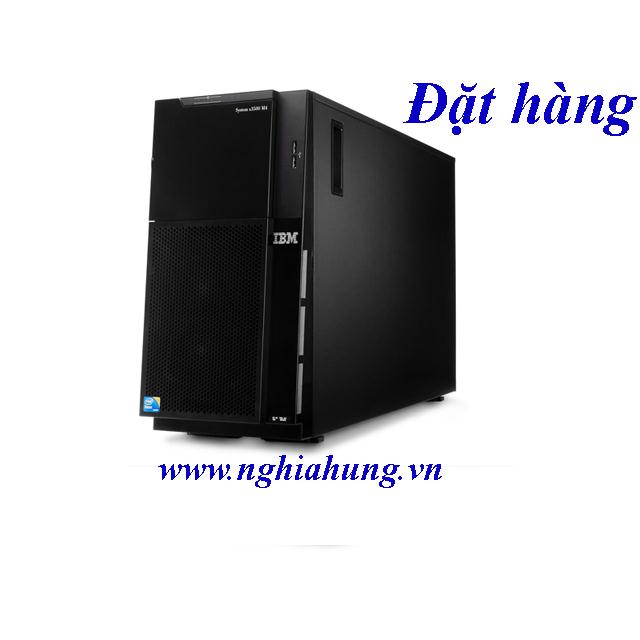

Máy Chủ Lenovo IBM® System® X3500 M5 - E5-2609 v3 |
CPU: 1x 6 Core E5-2609 v3 (1.9GHz, 15M Cache)
RAM: 16GB PC4, RDIMM ECC
HDD: Option HDD SAS/SATA
DVD: DVD ROM
RAID: IBM ServerRaid M1215 Support RAID (0,1,10)
NIC: Quad Gigabit Ethernet Intel 5719/TOE
Power Supply: 1x IBM 550W (1/2)
Hàng nhập trực tiếp từ Mỹ.
" Hãy liên hệ với chúng tôi để có giá tốt nhất " |
|
Components |
Specification |
|
Firmware |
Lenovo-signed firmware |
|
Form factor |
Tower or 5U Rack. |
|
Processor Server IBM X3500 M5 CPU E5-2609v3 |
Up to two Intel Xeon processor E5-2600v3 product family CPUs with 18 cores (2.8 GHz corespeeds); or 14 cores (2.6 GHz), 12 cores (up to 2.6 GHz), 10 cores (2.3 GHz), 8 cores (up to 3.2GHz), 6 cores (up to 2.4 GHz), 4 cores (3.0 GHz)
Two QPI links up to 9.6 GT/s each. Up to 2133 MHz memory speed. Up to 45 MB L3 cache. |
|
Chipset |
Intel C612. |
|
Memory Server IBM X3500 M5 CPU E5-2609v3 |
Up to 24 DIMM sockets (12 DIMMs per processor). RDIMMs and LRDIMMs are supported. Memory types cannot be intermixed. Memory speed up to 2133 MHz. |
|
Memory maximums |
With RDIMMs: Up to 384 GB with 24x 16 GB RDIMMs and two processors
With LRDIMMs: Up to 1.5 TB with 24x 64 GB LRDIMMs and two processors |
|
Memory protection |
ECC, Chipkill (for x4-based memory DIMMs), memory mirroring, and memory rank sparing |
|
Disk drive bays |
Available configurations:
Up to 32x 2.5-inch hot-swap SAS/SATA HDDs
Up to 12x 3.5-inch hot-swap SAS/SATA HDDs or SSDs
Up to 6x 3.5-inch hot-swap HDDs + 16x 2.5-inch hot-swap drives HDDs/SSDs
Up to 6x 3.5-inch simple-swap SATA HDDs
Additional drive bays for the above configurations:
Two 5.25-inch drive bays for optical drives |
|
Maximum internal storage |
72 TB with 12x 6TB 3.5-inch NL SAS or NL SATA hot-swap HDDs
51.2 TB with 32x 1.6TB 2.5-inch SAS hot-swap SSDs
38.4 TB with 32x 1.2TB 2.5-inch SAS hot-swap HDDs
36 TB with 6x 6TB 3.5-inch NL SAS or NL SATA simple-swap HDDs Intermix of SAS and SATA is supported. |
|
Storage controller Server IBM X3500 M5 CPU E5-2609v3 |
Onboard 6 Gb SATA: no RAID support
12 Gb SAS/SATA RAID: RAID 0, 1, 10 with M1215 or M5210. Optional upgrade to RAID 5, 50 is available for M1215. Optional upgrade to RAID 5, 50 is available for M5210 (zero-cache; 1 GB non-backed cache; 1 GB, 2 GB or 4 GB flash-backed cache). Optional upgrade to RAID 6, 60 is available for M5210 with memory cache upgrades.
12 Gb SAS/SATA non-RAID: N2215 HBA |
|
Optical drive bays |
Two half-height 5.25-inch bays for optical or tape drives. Supports DVD-ROM or Multiburner. |
|
Tape drive bays |
Two half-height 5.25-inch bays for optical or tape drives. Support for one RDX internal USB tape drive. |
|
Network interfaces Server IBM X3500 M5 CPU E5-2609v3 |
Four integrated Gigabit Ethernet 1000BASE-T ports (RJ-45) based on Broadcom BCM5719 controller |
|
PCI Expansion slots |
Up to seven slots with two processors and four slots when one CPU is installed. All slots are
PCIe 3.0 slots:
Slot 1: PCIe 3.0 x8 (x8 wired); full-height, half-length
Slot 2: PCIe 3.0 x16 (x8 wired); full-height, full-length
Slot 3: PCIe 3.0 x16 (x16 wired); full-height, full-length
Slot 4: PCIe 3.0 x8 (x8 wired); full-height, full-length
Slot 5: PCIe 3.0 x8 (x8 wired); full-height, half-length (requires second processor)
Slot 6: PCIe 3.0 x16 (x16 wired); full-height, full-length (requires second processor)
Slot 7: PCIe 3.0 x16 (x16 wired) full-height, full-length (requires second processor)
Slots 3 and 6 support double-wide GPUs |
|
Power supply |
Up to two redundant hot-swap 550 W, 750 W or 900 W High Efficiency Platinum AC powersupplies, or 750 W High Efficiency Titanium AC power supplies |
|
Systems management |
UEFI, IMM2.1 that is based on Renesas SH7758, Predictive Failure Analysis, light path
diagnostics panel on the front of the server with optional upgrade kit, Automatic Server Restart,
ToolsCenter, Systems Director and Active Energy Manager. Optional IMM Advanced Upgrade
software feature for remote presence |
|
Video |
Matrox G200eR2 with 16 MB memory integrated into the IMM2.1. Maximum resolution is 1600x1200 at 75 Hz with 16 M colors. |
|
Operating systems supported Server IBM X3500 M5 CPU E5-2609v3 |
Microsoft Windows Server 2012 R2, 2012 and 2008 R2, Red Hat Enterprise Linux 6 and 7, SUSE Linux Enterprise Server 11, VMware vSphere (ESXi) 5.1 and 5.5. |
