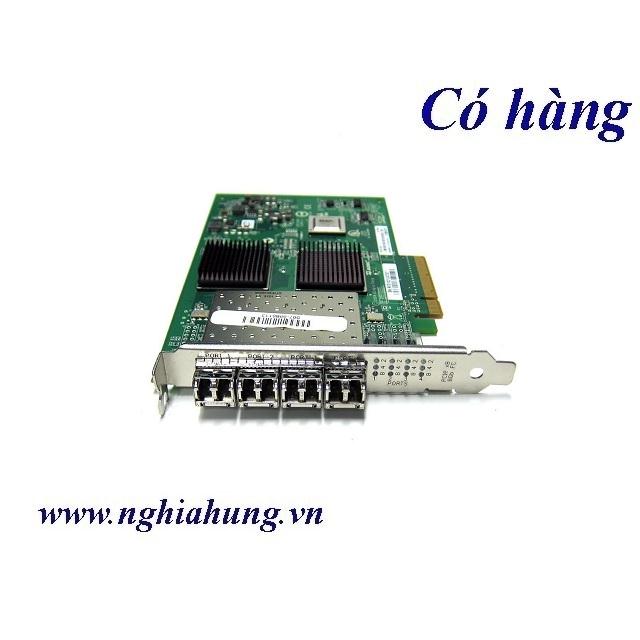

The QLogic QLE2564 Form factor 1.0/PCIe 2.0 8 GB Quad Port host bus adapters provide Fibre Channel performance and data transfer rate 8 Gbps Fibre Channel transfer rates are well-suited for enterprise network and storage device connections. The QLogic is a Quad Port unit with a low-profile Interface Type PCI Express 3.0 x4 / PCI Express 2.0 x8. It has 6 Months Warranty from us.
Specifications
Brand: QLogic
Model: QLE2564
MPN: QLE2564
General
Device Type: Host bus adapter
Form Factor: Plug-in card
Interface (Bus) Type: PCI Express 2.0 x8
PCI Specification Revision: PCIe 2.0
Details
Dimensions & Weight
Depth: 6.6 in
Height: 4.4 in
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 131 °F
Humidity Range Operating: 10 - 90% (non-condensing)
Expansion / Connectivity
Expansion Slots: 4 (total) / 0 (free) x SFP+
Interfaces: 4 x 8Gb Fibre Channel (short wave) - LC multi-mode
Compatible Slots: 1 x PCI Express 2.0 x8
Miscellaneous
Compliant Standards: UL, TUV, cUL, DHHS, VCCI Class A ITE, EN55022 Class A, UL 60950, MIC, ICES-003 Class A, EN 60950-1, RoHS, BSMI CNS 13438, EN 60825-1, FCC Part 15 B Class A, AS/NZS 3548 Class A, CAN/CSA C22.2 No. 60950-1
Networking
Ports: 8Gb Fibre Channel x 4
Connectivity Technology: Wired
Data Link Protocol: 8Gb Fibre Channel (SW)
Fibre Channel: FC-AL, FC-AL-2, FCP-2, FCP-3
Data Transfer Rate: 8.5 Gbps
Capacity: Maximum number of initiators per port: 200000 Maximum number of targets per port: 200000
Features: Full duplex capability, auto-negotiation, Quality of Service (QoS), dynamic provisioning
Power
Power Consumption Operational: 13 Watt
Software / System Requirements
OS Required: Microsoft Windows Server 2003, Novell NetWare 6.5, SuSE Linux Enterprise Server 9, Microsoft Windows XP Professional x64 Edition, OpenSolaris, SuSE Linux Enterprise Server 11, Red Hat Enterprise Linux AS 4.x, Red Hat Enterprise Linux AS 5.x, Microsoft Windows Vista Business, SuSE Linux Enterprise Server 10, Microsoft Windows Vista Enterprise, Microsoft Windows Server 2008, VMware ESXi 3.5, Oracle Solaris 10, VMware ESX, Oracle Solaris SPARC
Additional Requirements: CD-ROM
System Requirements Details: Intel x86-64 Opteron SPARC
Please contact with us if you have any question or to know the compatibility of this with your current server or storage array.
