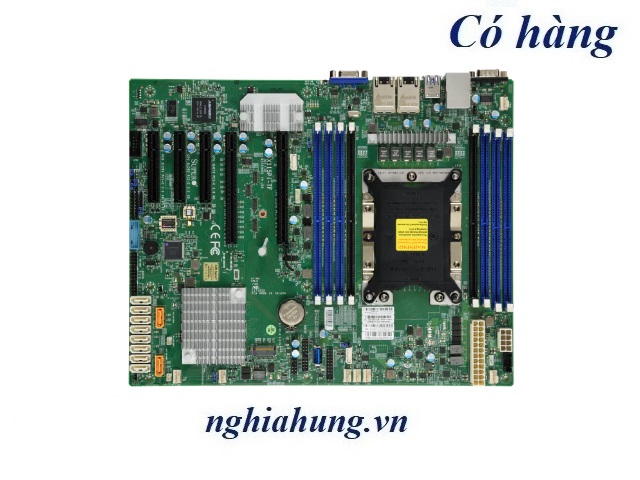

Bo mạch chủ Supermicro MBD-X11SPi-TF Mainboard

Product SKUs

MBD-X11SPI-TF

Physical Stats

Form Factor

• ATX

Dimension

• 12" x 9.6" (30.48cm x 24.38cm)

Processor

CPU

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
• Single Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 205W TDP

Core

• Up to 28 cores

Note

• BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP
  BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System Memory

Memory Capacity

• 8 DIMM slots
• Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz

Memory Type

• 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)

DIMM Sizes

• LRDIMM: 32GB, 64GB, 128GB
• RDIMM: 8GB, 16GB, 32GB, 64GB

Memory Voltage

• 1.2V

Error Detection

• Corrects single-bit errors

On-Board Devices

Chipset

• Intel® C622

SATA

• Intel® C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

• ASPEED AST2500

Graphics

• 1 ASPEED AST2500 BMC port(s)

Network Controllers

• Dual LAN with 10GBase-T with Intel® X722 + X557

Input / Output

SATA

• 10 SATA3 (6Gbps) port(s)

LAN

• 2 RJ45 10GBase-T ports

USB

• 3 USB 3 port(s) (1 Type A; 2 via header)
• 6 USB 2.0 port(s) (4 via header; 2 rear)
• 2 USB 3.0 port(s) (2 rear)

Video Output

• 1 VGA port(s)

Serial Port

• 2 COM Port(s) (1 header; 1 rear)

DOM

• 2 SATA DOM (Disk on Module) power connector support

TPM

• 1 TPM Header

Expansion Slots

PCIe

• 1 PCIe 3.0 x16,
• 1 PCIe 3.0 x16 (x16 or x8 ),
• 1 PCIe 3.0 x8 (x0 or x8 ),
• 1 PCIe 3.0 x8,
• 1 PCIe 3.0 x4 (in x8 slot)

M.2

• M.2 Interface: PCIe 3.0 x4; SATA
• Form Factor: 2280, 22110
• Key: M-Key

System BIOS

BIOS Type

• AMI UEFI

BIOS Features

• ACPI 6.0
• RTC (Real Time Clock) Wakeup
• SMBIOS 3.0 or later

Management

Software

• SuperDoctor® 5, NMI, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, IPMI2.0, Watchdog

Power Configurations

• Power-on mode for AC power recovery, ACPI Power Management

PC Health Monitoring

Voltage

• VBAT, Supports system management utility, Monitors CPU voltages, HT, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, 7-fan status

LED

• UID/Remote UID
• Suspend static indicator LED
• CPU / System Overheat LED

Temperature

• CPU thermal trip support
• PECI

FAN

• 7x 4-pin fan headers (up to 7 fans)
• System level control
• PWM fan speed control
• Fan speed control
• Overheat LED indication

Other Features

• WOL, UID, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management

Operating Environment

Operating Temperature Range

• 0°C - 50°C (32°F - 122°F)

Non-Operating Temperature Range

• -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range

• 8% - 90% (non-condensing)

Non Operating Relative Humidity Range

• 5% - 95% (non-condensing)
